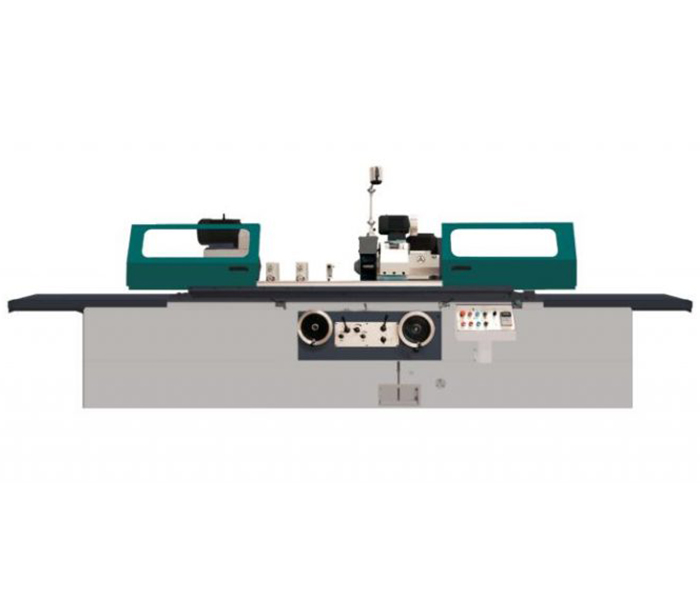

Cylindrical Grinder Introduction

What is Cylindrical Grinder?
The cylindrical grinder is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
Cylindrical grinding is defined as having four essential actions:
1.The work (object) must be constantly rotating
2.The grinding wheel must be constantly rotating
3.The grinding wheel is fed towards and away from the work
4.Either the work or the grinding wheel is transversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.

Types of Cylindrical Grinder
There are four different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding

Outside diameter grinding
OD grinding is grinding occurring on external surface of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.

Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the hole being ground. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs. See also ID Grinding.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.

Control Methods of Cylindrical Grinder
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.

Application of Cylindrical Grinder
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
