The main performance characteristics：
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed，
5. Stable performance, high efficiency, suitable for bulk material sawing.
Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical specifications:
|
Main technical parameters
|
GH4228
|
GH4230
|
GH4235
|
|
Sawing range
|
280-280*280
|
300-300*300
|
350-350*350
|
|
Belt saw blade size
|
3505*34*0.9mm
|
3860*34*1.1
|
4115*34*1.1mm
|
|
Saw blade speed
|
27,45,69mm/min
|
27,45,69mm/min
|
27.45,69mm/min
|
|
Working clamp mode
|
Hydraulic press
|
Hydraulic press
|
Hydraulic press
|
|
Main motor power
|
2.2kw
|
2.2kw
|
3kw
|
|
Hydraulic motor power
|
0.55kw
|
0.75kw
|
0.75kw
|
|
Cooling pump power
|
0.04kw
|
0.04kw
|
0.04kw
|
|

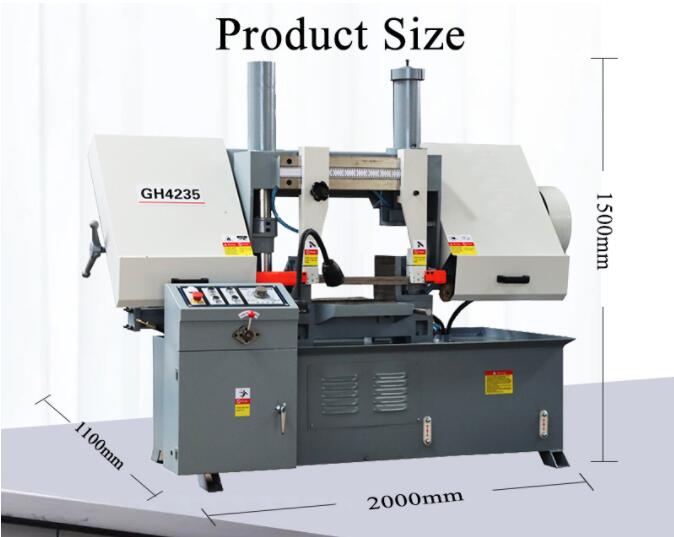

External form size
|
1860*1000*1400mm
|
1900*1100*1450
|
2000*1100*1500mm
|
