Internal grinding machine

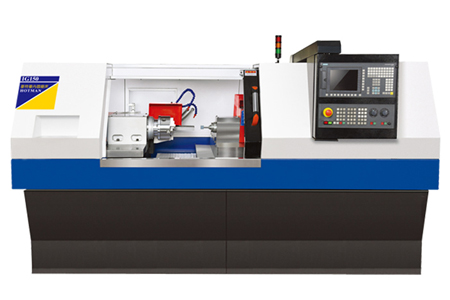

IG150-II High Precision CNC Internal Grinder (workbench extended type)

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product Description :

● The body design is ergonomically designed for easy operation

● Compact internal grinding machine with small installation space and suitable for any workshop

● The sliding surface adopts static pressure automatic lubrication system, which has smooth movement and good wear resistance.

● Fully automatic grinding: rough grinding, dressing, fine grinding, non-sparking grinding cycle action. High precision, easy operation and greatly increased production capacity. Suitable for mass production and grinding of a small amount of different form workpieces.

● The head frame rotates with P4 high-precision spindle bearings, featuring high precision, high rigidity and quiet operation.

● The body design is ergonomically designed for easy operation

● Compact internal grinding machine with small installation space and suitable for any workshop

● The sliding surface adopts static pressure automatic lubrication system, which has smooth movement and good wear resistance.

● Fully automatic grinding: rough grinding, dressing, fine grinding, non-sparking grinding cycle action. High precision, easy operation and greatly increased production capacity. Suitable for mass production and grinding of a small amount of different form workpieces.

● The head frame rotates with P4 high-precision spindle bearings, featuring high precision, high rigidity and quiet operation.

● The feed shaft is equipped with a precision ball screw, which is driven by a servo motor and can be fed without a section.

● Dressing mode is CNC automatic correction and dressing

(1) If you use diamond or CBN grinding wheel, you can choose not to correct the dressing mode.

(2) For workpieces that are difficult to grind, multiple correction modes can be selected to ensure the best processing quality.

● In mass production, automatic production equipment such as automatic feeding and automatic unloading can be installed.

1. Grinding cooling device (water tank / water pump / water pipe) (1 set)

2. Diamond dressing pen (1 pcs)

3. Angle adjustment table (1 pcs)

4. Toolbox (hex wrench set / Open end wrench / screwdriver) (1 pcs)

5. Spindle grinding wheel post (3 pcs)

6. High-speed grinding spindle (RMP optional) (1 pcs)

7. Basic adjustment block (6 pcs)

1. Hydraulic three-jaw chuck

2. Chuck flange

3. Mechanical spindle: 10,000/20,000/30,000rpm Electric spindle: 40,000/100,000rpm

4. End face detecting device

5. Magnet filter

6. Paper tape filter

7. Closed full cover and automatic door

8. Inner diameter automatic measuring device
