Recently, Shanghai ANTISHICNC received an inquiry from a foreign company specializing in the production of various metal tools. After browsing our company’s official website, the customer was very interested in our TG680 tool grinder. During the communication, they found that our company’s tool grinder mainly includes 3 models, TG560, TG580, TG680, but they don’t know the main difference between these 3 machines.

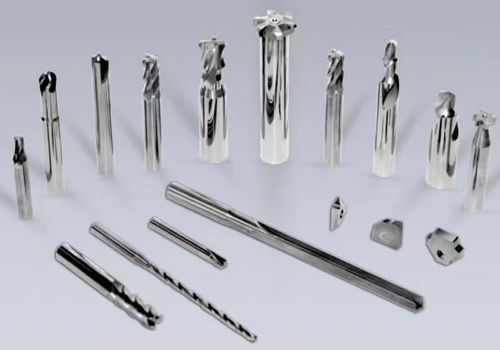

Products produced by the client company
CNC tool grinding machine is a machine tool used to process end mills, ball end mills, step drills, reamers, forming mills, deep hole drills, triangular chisels and bull planers, etc. It can sharpen metal cutting tools Cutting edges and grooves, as well as outer circles, planes and complex shapes of general medium and small parts, the maximum diameter of the grinding workpiece is 250mm.
Many customers, like our TG680 customer, do not know how to choose a suitable model when they choose a five-axis CNC tool grinder.
The following is an introduction to the three CNC five-axis tool grinders produced by Shanghai ANTISHICNC Machinery Equipment Co., Ltd.:

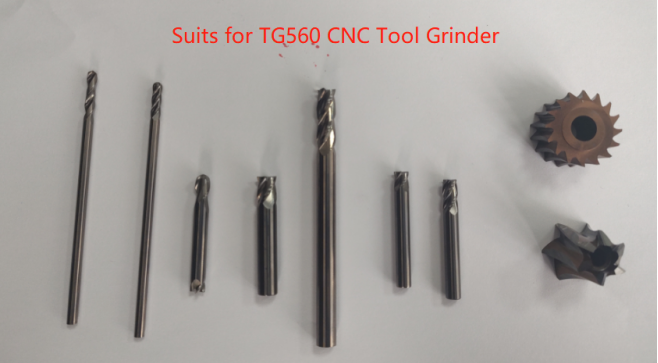

TG560 five-axis CNC tool grinder is to process 3mm-12mm standard knives, forming knives and grinding knives;

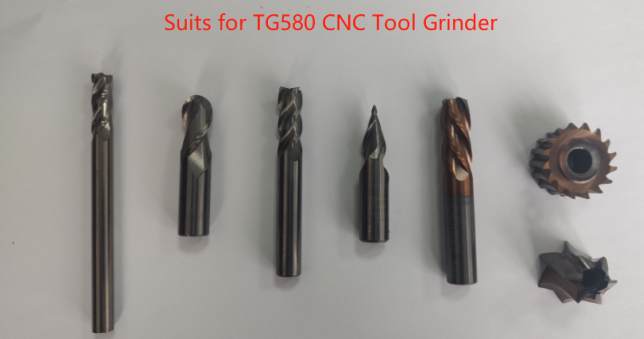

TG580 five-axis CNC tool grinder is to process large diameter tools of 12mm-32mm (below 12mm can also be processed), standard knives and non-standard forming knives can be processed (not suitable for 3mm and below);

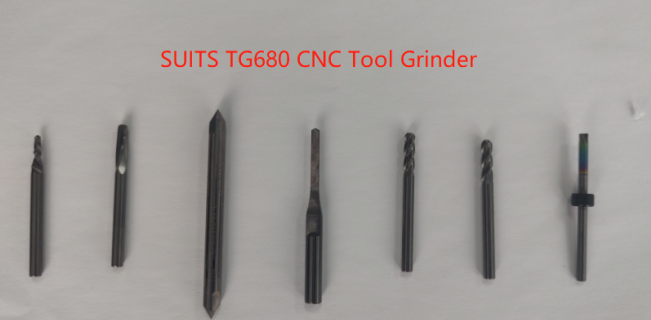

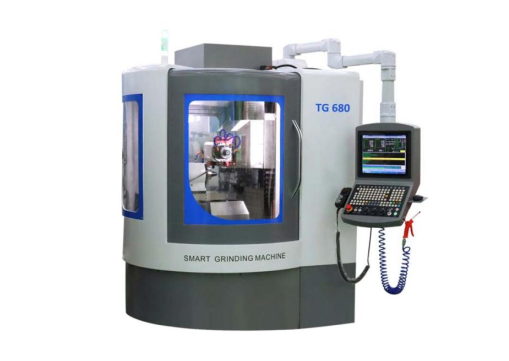

TG680 six-axis CNC tool grinder is 1mm-8mm small diameter tools (mainly processing non-standard tools)
The above three CNC tool grinder machines all have automatic loading and unloading functions . Among them, the TG560 CNC grinding machine is equipped with a built-in simple manipulator as standard, and the loading and unloading manipulators of the TG580 and TG680 two CNC tool grinders need to be selected according to user needs .

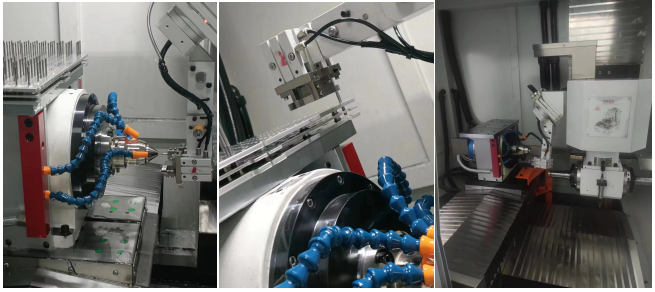

Our TG560 comes standard with a simple manipulator as shown below:

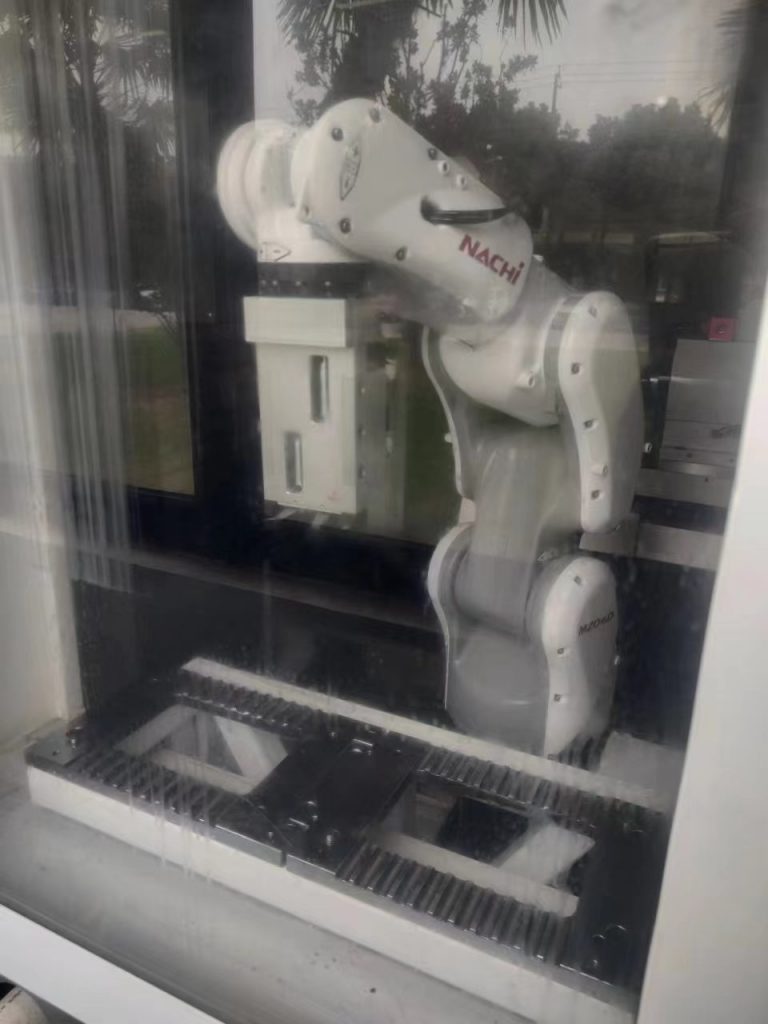

What we recommend optional manipulator as below picture, which with high efficiency, good accuracy and stable performance.
In addition, our CNC grinding machine grinding software is developed and designed with reference to the software of international leading equipment companies, which is very easy to operate and use. We also provide a full set of teaching, please consult our sales staff contact@antsmachine.com for details, we can provide you with a complete cutting tool and tool processing program.
Finally, the customer chose our TG580 tool grinder after understanding the differences between the above three CNC tool grinders. The customer believes that this machine can process workpieces with a larger diameter range, which is more suitable for the customer’s current needs.
