FEATURES

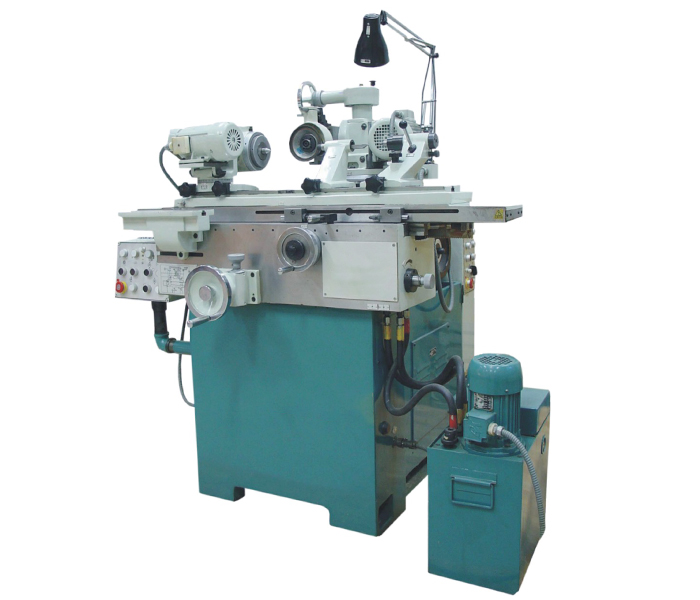

| This machine to be designed specially and accurately for grinding the miscellaneous tangalloy milling cutter, tool-bit and the other cutter or any special machine tools by the simplest method. |
| The main motor is to be designed of double-ended and mounted the angular contact ball bearings which becentre-true and vibration-free operation to keep the runout and accuracy of its spindle in longtime. This motor is to be powerful and ball bearings are to be easy to maintain and repair. |
TECHNICAL SPECIFICATION
| Distance Between center | 545mm |
| Longitudinal travel of table | 400mm |
| Cross travel of saddle | 250mm |
| Vertical travel of wheel head | 230mm |
| Longitudinal way: Cylindrical Steel Roller | V-Way Steel Roller |
| Cross way | Dovetail by Hardened guideway with V-flat plastic- coated structure. |
| Swivel over table | 280 mm. |
| Swivel angle of table | 45 Degree (Right & Left) |
| Swivel adjustment of column | 360 Degree |
| Tilting angle of wheel head | 30 Degree |
| Diameter of cup wheel | 125mm |
| Speed of wheel | 2700-5500rpm@50Hz |
| Motor power: | 3.15KW (4.2 HP) |
| Cooling system, Table (stand) | Available |
