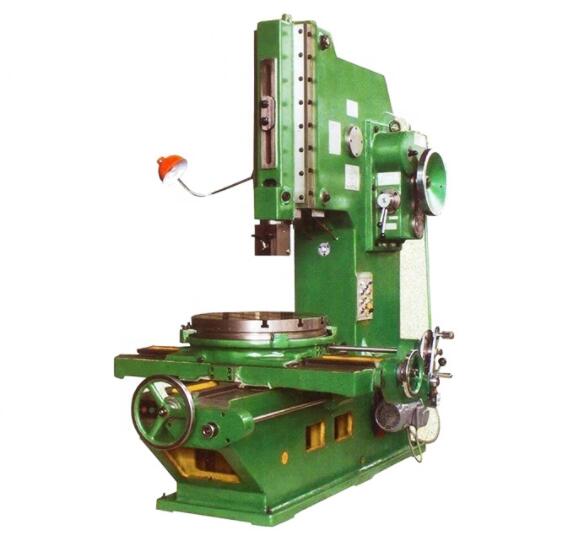

B5020 / B5032 / B5040 / B5050 Mechanical Vertical Planning Planner Slotting Machine

Application:
1. The worktable of the machine tool has three different feed directions (longitudinal, horizontal and rotation), so the work object in the machine tool is clamped once and has multiple surfaces.

2. Hydraulic transmission mechanism with reciprocating movement of sliding pillow and hydraulic feeding device for working table.

3. The speed of each stroke of the ram is the same, and the moving speed of the ram and the worktable can be continuously adjusted.

4. The hydraulic console has a plunger reversing oil reversing mechanism. In addition to hydraulic and manual feed, there is also a single motor to drive vertical, horizontal and rotational rapid movement.

5. The slotting machine with hydraulic feed is turned over and fed instantly at the end of the work, so it is better than the drum feed used by the mechanical slotting machine.

Specification
Unit
B5020
B5032
B5040
B5050
Max. stroke of RAM
mm
220
340
400
500
Maximum ram slotting length
mm
200
320
500
2000
Ram motion frequency
time/min
32.50.80.125
20.32.50.80
20.32.50.80
9,12.5,18,25,36,50
Ram tilt angle
°
0-8
0-8
315
430
Ram vertical adjustment distance
mm
230
315
0-8
+/-10
Cutter head bearing surface to the distance between the forearm bed
mm
485
600
630
1000
Table Diameter
mm
500
630
600
990
The distance between the lower end of the sliding frame to work table
mm
320
490
690
740
Max. longitudinal moving distance of working table
mm
500
630
620
1000
Max. transverse moving distance of working table
mm
500
560
560
660
Table maximum rotation angle
°
360
360
360
360
Vertical and horizontal table power feed range
mm
0.08-1.21
0.08-1.21
0.08-1.21
0.1-1.2
Motor power
kw
3
4
4
7.5
Motor speed
r/min
1430
1430
1430
1430
Machine weight
kg
2200
3000
3700
10300
All dimension
mm
191*130*199
226*149*224
229*152*248
340X208X330
