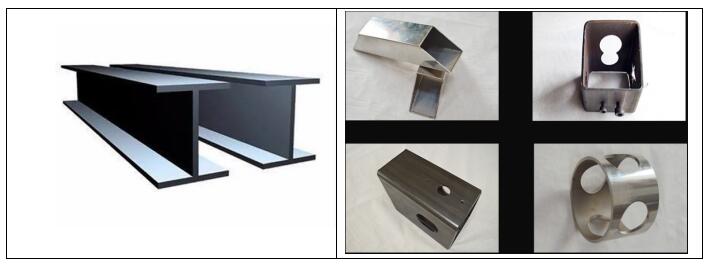

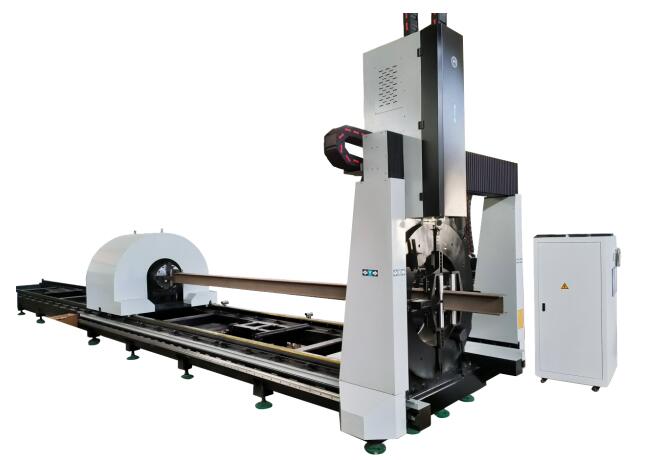

FL-8012 five-axis fiber optic pipe cutting machine is used to cut metal round pipes, square pipes, channel steel, angle steel, H-shaped steel, etc. It adopts a 19-inch high-resolution LCD color display that can display cutting graphics and cutting operation trajectories. Cutting programs can be edited manually.
This model adopts five-axis perfect cutting and can cut round tubes, square tubes, channel steel, angle steel, and H-shaped steel. In addition, it also supports functions such as pause, forward, backward, and speed adjustment during processing. It can store 200G files and can be used at will. It is driven by a high-efficiency servo motor, which has fast speed, high efficiency, high precision and stable operation. Use high-flex shielded wire to truly resist high-frequency interference. Applicable to various fiber optic models. The movable beam can save tailings. The front chuck is equipped with two sets of intelligent subsequent splicing devices to facilitate long material processing requirements. There is an intelligent material support system in the middle to prevent buyers from sagging long materials, which affects processing and cutting accuracy.
The unique advantages of this model of Shanghai ANTS Machine are:

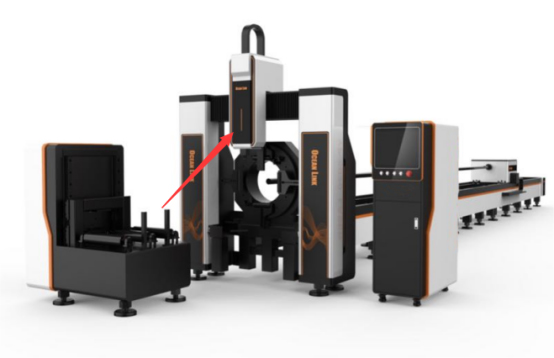

1. Special cross-travelling CUT function: This cross-travelling CUT can maximize the saving of tailings, facilitate cutting of long materials, and protect the front chuck. For example, the advantages of this function will be particularly obvious when the material above 4 meters is not cut off.

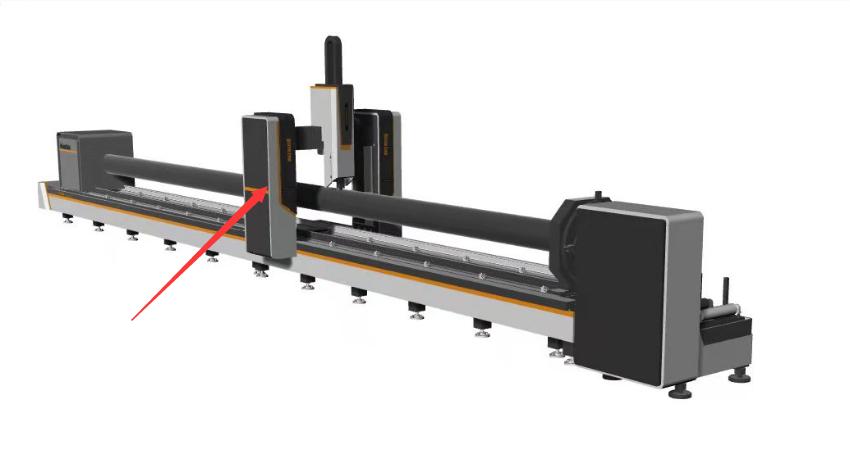

2.Movable gantry mechanism: The gantry of the five-axis pipe cutting machine can be moved along the guide rail to the rear chuck for cutting. The gantry currently on the market is basically fixed and cannot be moved. It can only be placed in front of the chuck. cutting, which will result in more tailings remaining, which is a waste of material, and is not suitable for cutting long materials. The movable gantry is a unique advantage of our machine. Without this function, the length of the tailings is about 50cm, and the cutting The more, the more raw materials are wasted by customers. With the cross-border function of the gantry, the tailings can be controlled at 4cm, which greatly saves raw materials for customers.
| Special cross-travelling Cut function | Movable gantry Mechanism |
 |
 |

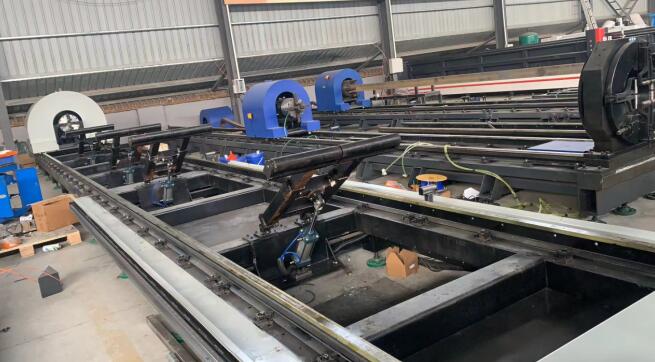

3. Follow-up smart support: Considering that customers will cut long workpiece materials, we designed a follow-up smart support in the middle of the machine to lift the workpiece and avoid the risk of the workpiece sagging. This smart support is our Exclusively designed by technical staff after a long period of summary, it mainly has the following four advantages:
(1) When cutting large tubes, the material is relatively heavy and often vibrates when loading. With our exclusively designed follow-up smart holder, the machine will not frequently alarm and there is no need to restart the machine, thus avoiding frequent starts. It causes damage to the laser and laser head, improves cutting efficiency, and helps users improve production efficiency.
(2) Adjustable air pressure. Users can adjust parameters according to the weight of the pipe to avoid excessive air pressure causing squeezing of the pipe.
(3) The intelligent support developed by Shanghai Antis has a relatively strong load-bearing capacity and can meet the needs of cutting large pipe materials. It has an ultra-long service life and high durability. It has low requirements on operators and can perfectly adapt to the operations of junior operators.
(4) Ensure cutting accuracy. Without the smart support, after the machine has been used for a long time, the material will sag when cutting large tubes, and cutting accuracy cannot be guaranteed.
4. Extended warranty service: Compared with the 1-year warranty service of other domestic factories, Shanghai Antis provides a 2.5-year warranty service. Shanghai Antis has been focusing on cutting large tubes for more than ten years and has professional technology. With a strong team, a sales team and an excellent after-sales team, our machines continue to receive praise and return orders from customers.
