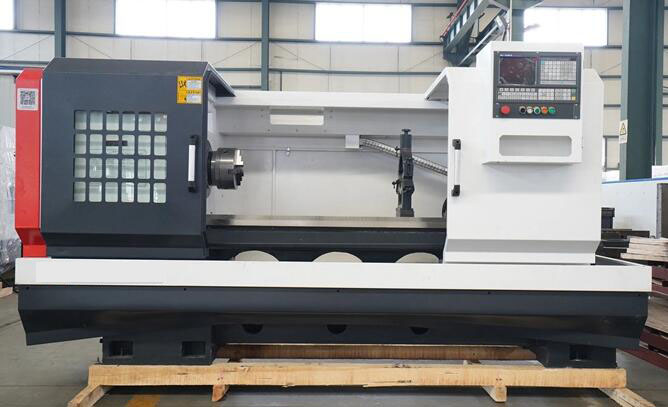

CK6160 Precision Horizontal Flat Metal Automatic CNC Lathe:
Main performance features:
Widened high stability bed
Two-speed spindle speed, infinitely variable
wider laminate
Integrated automatic lubrication system
Application:
This machine is suitable for processing various small and medium shaft and plate workpieces, and can also turn various threads, arcs, cones, and inner and outer surfaces of rotation. This machine is widely used in hygiene, value, electrical appliances, instruments, automobiles, motorcycles, bearings, etc.
| Specifications | Units | CK6160 |
| Max.swing over bed | mm | 600 |
| Max.processing length | mm | 750/1000/1500/2000/3000 |
| Spindle taper | MT6(Ø90 1:20 for B)[Ø113 1:20 for C] | |
| Chuck size | mm | C6(D8)[D8] |
| Spindle bore | mm | 52(80 for B)[105 for C] |
| Spindle speed 3 steps (auto change gear) | rpm | Independent spindle:100-1600 21-1500(162-1500,66-500,21-150) |
| Tailstock sleeve travel | mm | 150 |
| Tailstock sleeve taper | MT5 | |
| Position accuracy | mm | ±0.015 |
| Repositioning accuracy | mm | ±0.006 |
| X/Z axis rapid traverse | m/min | 4/6 |
| Spindle motor | kw | 11 |
| Machine dimension for 750 | mm | 2550x1550x1900 |
| Machine dimension for 1000 | mm | 2750x1550x1900 |
| Machine dimension for 1500 | mm | 3250x1550x1900 |
| Machine dimension for 2000 | mm | 3700x1550x1900 |
| Machine dimension for 3000 | mm | 4710x1550x1900 |
| Machine weight for 750 | kg | 2300/2900 |
| Machine weight for 1000 | kg | 2450/3050 |
| Machine weight for 1500 | kg | 2650/3250 |
| Machine weight for 2000 | kg | 2880/3450 |
| Machine weight for 3000 | kg | 3700/4300 |
