Equipment Introductions
X-300 can be used for three grinders at the same time. The electrical control of the filter system is XINJE, all electromagnetic control systems are AIRTAC, the valves are stainless steel pneumatic angle seat valves, and the pneumatic modules are Taiwan AIRTAC brand; all the electrical lines used in the filter are in line with EU electrical standards; the filter system pipelines are made of high-quality red smooth oil pipelines.

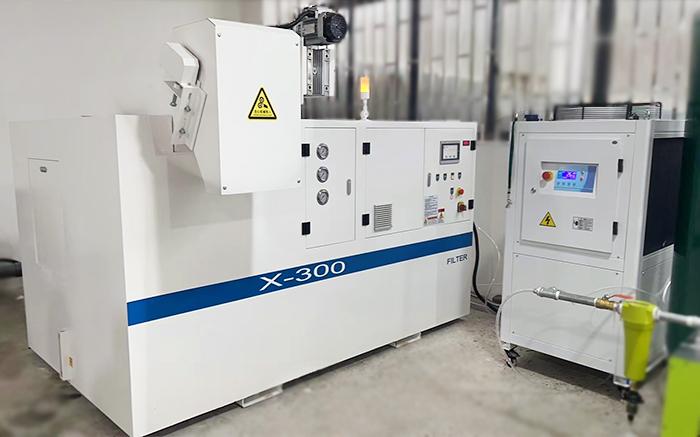

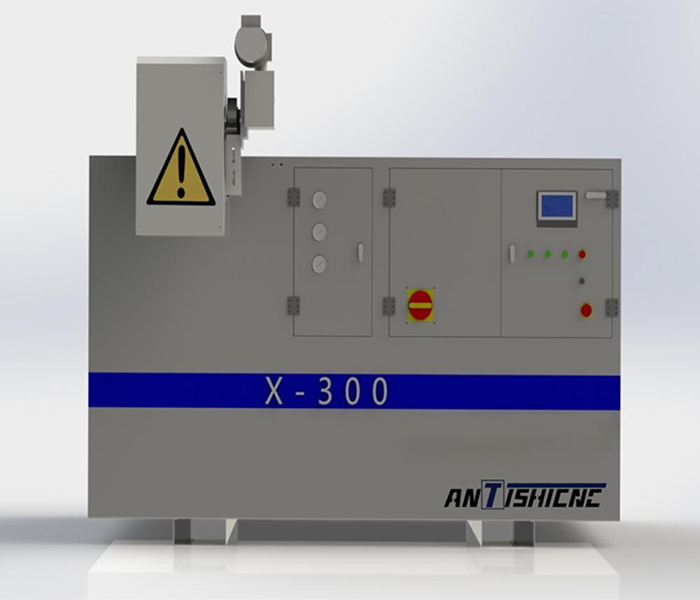

Product reference picture
Technical specifications
| Specifications | X-300 High Precision Tungsten Carbide Grinding Fluid Filter |
| Filtration system capacity | Continuous filtration capacity of at least 450 litres per minute |
| Filtration accuracy | 1µm |
| Filtration medium | Reusable waterproof filter element |
| Filtration requirements | Impurities are hard alloy tungsten steel ash powder and grinding wheel ash |
| Compressed air requirements | Dry compressed air greater than 6bar, flow greater than 20CFM, interface greater than Φ12mm |
| Power supply requirements | 50HZ , 380V(Can be customized) |
| Minimum fuel requirements | ≥1600L (reference value, actual demand needs to be determined based on pipeline and distance) |
| Backwash method | Automatic backwash |
| Liquid supply interface size | DN50 |
| Liquid return port size | DN150 flange |
| Rated power | 9kw (without refrigeration) |
| Filter housing dimensions | 2500*1700*2000mm |
| Filter housing thickness | 3mm |
| Oil tank floor thickness | 5mm |
Standard Equipment
| Part Name | Quantity | Specifications | Supplier |
| Machine Box | 1 Pcs | Material: Q235 | CHINA |
| Filter barrel | 3 Pcs | Material: Q235 | CHINA |
| Filter element | 183 Pcs | Model: 3#
Material: laminated paper filter element |
CHINA |
| Filter pump | 1 Set | Power: 4KW | CHINA |
| Oil supply pump | 2 Sets | Power: 2.2KW | CHINA |
| Refrigerator | 1 Set | Model: 5P
(temperature controlled at ±0.5℃) |
CHINA |
| Ash discharger | 1 Set | 300 (standard) | CHINA |
| Electrical control box |
1 Set |
PLC (XP2-18R) | XINJE |
| Relay DC 24V | OMRON | ||
| Contactor LC1E1810 | SCHNEIDER | ||
| Switch power supply 220/24 | SCHNEIDER | ||
| Actuator | 1 Set | Solenoid valve | AIRTAC |
| Gas pipeline | CHINA |
