Recently, a long-standing client of Shanghai ANTISHICNC reached out to us again. Several years ago, they purchased a TG580 5-axis CNC tool grinder from us for processing carbide cutting tools. As the client manufactures tools from a variety of materials, the rising demand for ultra-hard cutting tools—such as those made of PCD, MCD, and CBN—meant that their existing TG580 grinding-wheel-based CNC tool grinder could no longer meet their evolving needs. Consequently, they contacted us to purchase a laser CNC tool grinder specifically designed for processing these ultra-hard materials.
Based on an analysis of the customer’s machining drawings, the primary machining diameters are under 160mm (and less than 200mm), and the material is ultra-hard PCD (polycrystalline diamond)—primarily for milling cutters. We recommended our TG160 CNC laser tool grinding machine, which fully meets the customer’s processing requirements.
 |
 |
 |
 |
| The workpieces the customer needs to process (data has been blurred). | |

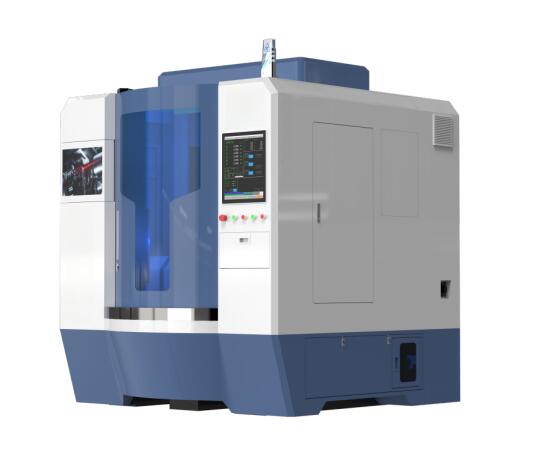

The TG160 CNC laser tool grinder is primarily designed for the manufacturing and regrinding of cutting tools made from ultra-hard materials—such as PCD, MCD, CBN, and ceramics—as well as brazed turning tools and milling cutters.
It offers the following advantages:
- High processing efficiency: Laser processing speeds are more than five times faster than traditional grinding wheel methods. Complex 3D cutting edges, chip breakers, and negative chamfers can be completed in a single setup, eliminating the need for frequent wheel changes or dressing.
- Exceptional precision: Surfaces appear smooth and free of serrations when viewed under 200x magnification.
- No tool deformation: Laser processing is a non-contact method, meaning there is no grinding pressure.
The following are the specific technical specifications for the TG160 CNC laser tool grinding machine.
| Parameters | TG160 |
| Control system | GOOGOLTECH |
| Max. machinable tool diameter | Φ0.1~200mm |
| Max. machinable tool length | 200mm |
| Precision of machining tool contour | ±0.005mm |
| Surface roughness of machining tools | Smooth and serrated surface under 200x microscope |
| Max. tool weight | 15Kg |
| A axis power | 0.42kw/200rpm/20 Nm |
| C axis power | 6kw /200rpm/300 Nm |
| Max. Laser power | 200W |
| Total power of machine tool | 13.5kw |
| A/C axis rotation range | A-axis: ± 125 ° C axis: 0-360 ° |
| A-axis repeat positioning accuracy | 4 arc sec |
| C-axis repeat positioning accuracy | 2arc sec |
| Linear axis positioning accuracy | ±0.002mm |
| Linear axis repeat positioning accuracy | ±0.001mm |
| Working table travel axis X-axis/Y-axis/Z-axis | X：400 / Y：450 / Z：300 |
| C-axis tool holder interface | HSKE63 |
| Machine power supply | AC380V 50HZ 3PH |
| Machine weight | 4T |
| Machine dimensions | 1900x1900x2400mm |
If you are also in need of a CNC laser tool grinding machine, please feel free to contact Shanghai Antishi at any time. Our professional engineers are available to provide you with expert technical support.
