Round bending machine is a mechanical device used for metal processing, which is mainly used to bend flat material into an arc shape.
It is composed of a frame, a rotating shaft, a rotating roll and a transmission device, etc., mainly by adjusting the position and height of the rotating roll to achieve the bending of the material.
The working principle of the round bending machine is mainly based on the principle of three-point rounding, through the change of the relative position of the workpiece and rotating motion, the workpiece produces continuous plastic deformation, so as to obtain the predetermined shape of the workpiece.
The round bending machine is a kind of widely used cold processing forming equipment, which realizes the shape transformation of the workpiece through the rolling compression of the workpiece in the pipe rolling machine. The main components of the roller include drum, motor, transmission system, heating system, etc. The drum is usually hollow structure, equipped with air heater and cooling water device, the motor drives the drum through the transmission system to rotate, the workpiece in the drum with the rotation of the drum and continue to move forward, and gradually formed through the friction of the wall, heat exchange and air cooling. Round bending machine in plastics, food, medicine, chemical and other fields have a wide range of applications.

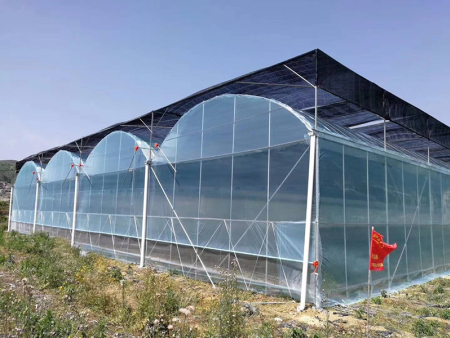

Recently, the Shanghai ANTS team received a consultation from a greenhouse production dealer.
Customer pipe requirements are:
1.Round tube: Diameter 40mm square tube 50x50mm rectangular tube 30x60mm
2.The bending radius is greater than 10mm
3.Thickness 1.5mm-3mm
4.The material to be bent is stainless steel
5.Vertical

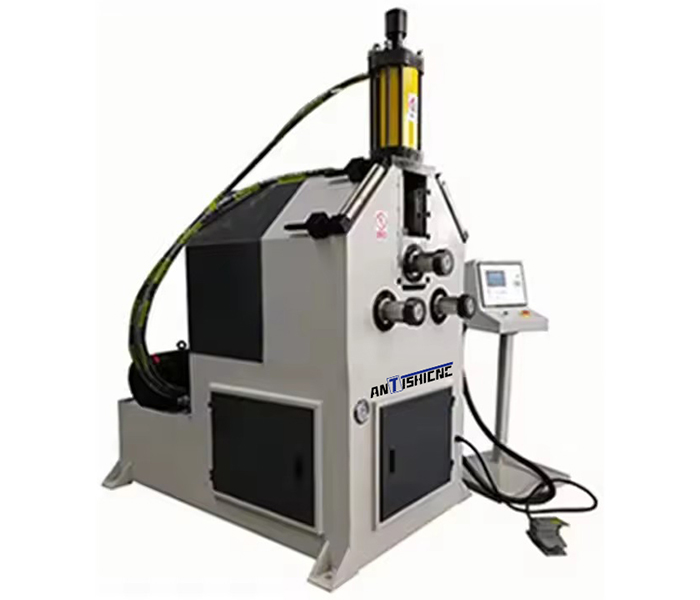

For this product, I will recommend a round bending machine that can bend large-radius profiles to the customer (for this parameter, we need to recommend three molds that meet the customer’s needs).
Main specifications | GY80NC-3 | Remark |
Max. pipe bending capacity | Φ80mm x 4mm | Specifications can be according to customer requirements |
Mini. elbow radius | R≧10D | |
Bending speed | 220mm/s | |
The mold diameter | 300mm | |
Total power | 7.5kw | |
Machine size | 1300mm x 1000mm x1600mm | |
Machine weight | 900kg |
If you are also a greenhouse manufacturer, or have similar processing needs, welcome to consult Shanghai ANTS.We have rich experience in the manufacture and application of round bending mechanism, and can provide you with professional technical support.
