Copper Bar Online Cutting Special Sawing Machine

Product description:

It is used for online sawing in front of the factory furnace, and it is used in conjunction with the tractor;

With automatic operation of the whole process of feeding, pressing, sawing, discharging and turning;

With multi-point control mode, the power of the machine tool can be quickly turned off when a fault is placed;

PLC automatic control, touch screen and buttons cooperate to operate, high reliability.

Product parameters:

Saw cutting specification 110(3 pieces) Band saw blade line speed (m/min) 50~120
Band saw blade specification (mm) 41x 1.3 x 5630 Main motor power (kw) 5.5
Hydraulic motor (kw) 2.2 Ingot length after sawing (mm) 500~2000
Cooling method Spray Spray cooling Saw Belt Feed Speed Hydraulic stepless speed regulation
Feeding motor power (kw) 1.5 Outlet speed 0~5

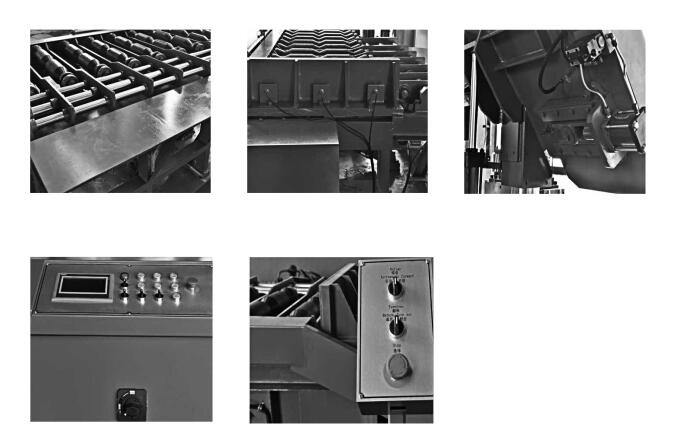

Detail photos:
