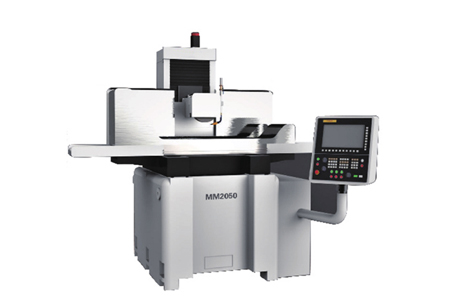

CNC Series Surface Grinding Machine
·External hydraulic device to ensure low temperature rise and stable power supply
·Automatic central lubrication device
·It is very easy to set up automatic grinding program, including roughing, finishing and sparkout strokes
·Precision grinding spindle requires no maintenance and is supported by preloaded high precision angular bearings
·The machine is designed to run continuously at maximum speed, very quiet operation, and maximum accuracy
·The machine bed, workbench, and column are all high-quality castings, which provide a solid foundation for grinding. The chute adopts tf wear-resistant material and is scrapped by hand.
Technical Parameters
| Model No. | Unit | FSG-50100NC | FSG-50160NC |
| table size (W×L) | mm | 500×1000(19.69″×39.37″) | 500×1600(19.69″×62.99″) |
| max. grinding size (W×L) | mm | 500×1000(19.69″×39.37″) | 500×1600(19.69″×62.99″) |
| max. distance from table to spindle center | mm | 600(23.62″) | |
| magnetic chuck size (optional equipment) | mm | 500×1000×1(19.69″×39.37″×1) | 500×1600×2(19.69″×62.99″×2) |
| speed of table longitudinal move | m/min | 5~25(0.20″~0.98″) | |
| WHEEL HEAD CROSS MOVE | |||
| auto intermittent feed | mm/t | 1~20(0.039″~0.79″) | |
| rapid speed | mm/min | 50~1500(1.97″~59.06″) | |
| feed of MPG | mm/div | 0.005(0.000197″) | |
| WHEEL HEAD VERTICAL MOVE | |||
| auto feed | mm/t | 0.005, 0.01, 0.02, 0.03, 0.04(0.000197″, 0.00039″, 0.00079″, 0.0012″, 0.0016″) | |
| rapid speed | mm/min | 50~500(1.97″~19.69″) | |
| feed of MPG | mm/div | 0.005(0.000197″) | |
| gindwheel size | mm | 355×(20~50)×127(13.98″×(0.79″~1.97″)×5.00″) | |
| motor of spindle | kW | 7.5 | |
| package size | cm | 399×225×228 | 564×225×228 |
| G.W. | kg | 5500 | 6000 |
