In modern manufacturing, CNC lathes, as high-precision and high-efficiency machining equipment, play a crucial role. Their transmission systems directly impact the performance, accuracy, and machining quality of the lathes. Among these, belt drive and gearbox drive are the two most common transmission methods in CNC lathes. This article will provide an in-depth analysis of the characteristics, advantages, disadvantages, and applicable scenarios of these two transmission methods, helping you better select and utilize CNC lathes.
1.Belt Drive
Working Principle
Belt drive relies on the friction between the belt and the pulley to transmit power, enabling the rotation of the spindle.
Advantages
| Low noise level | Belt drive runs smoothly with less noise, suitable for occasions with higher noise requirements for the working environment. |
| Easy maintenance | Belt drive structure is simple, easy to install and replace, low maintenance cost. |
| Overload protection | When the load is too large, the belt can slip and play a role in protecting the motor and transmission system. |
| Lower cost | Compared with gearbox transmission, the manufacturing cost of belt transmission is lower. |
Disadvantages
| Lower transmission efficiency | There will be a certain amount of energy loss in the belt transmission process, the transmission efficiency is relatively low and the energy loss is large. |
| Limited service life | Belt belongs to wearing parts, need to be replaced regularly. |
2.Gearbox Drive
Working Principle
Gearbox drive transmits power through the meshing of gears, enabling the rotation of the spindle and speed variation.
Advantages
| High transmission efficiency | Gear transmission meshes closely, with high transmission efficiency and low energy loss. |
| Wide speed range | Gearbox can realise multi-step speed change to meet different processing needs. |
| High load carrying capacity | Gear transmission can withstand large loads, suitable for heavy-duty processing. |
| Long service life | Gear transmission has stable structure and long service life. |
Disadvantages
| High noise level | During gear meshing, noise and vibration are easily generated, especially at high speeds or under heavy load conditions. |
| High maintenance costs | Gearboxes require regular lubricant replacement and inspection of gear wear, making maintenance relatively complex and costly. |
3. Application Scenarios and Selection Recommendations
In practical applications, the choice between belt drive and gearbox drive depends on the specific usage requirements of the CNC lathe. For general machining of mechanical parts, belt drive may be a suitable choice; for high-load machining, gearbox drive can better leverage its advantages.
Our company offers two series of horizontal CNC lathes:

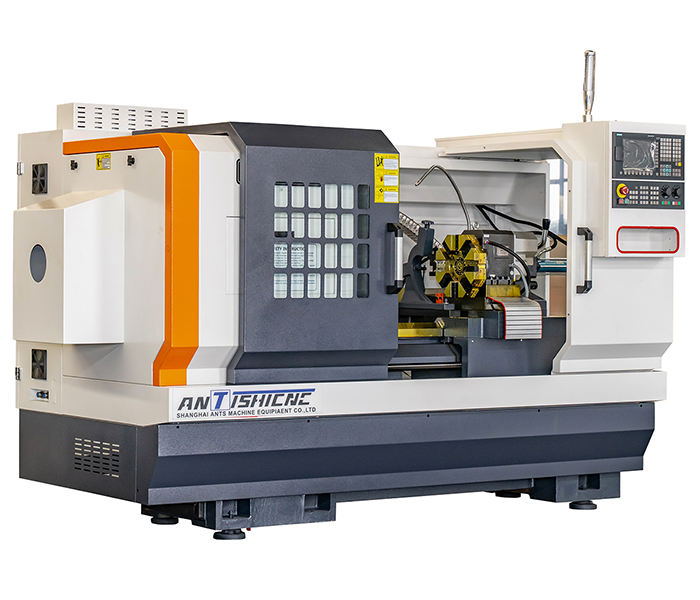

The CK6150 series features a belt drive system.

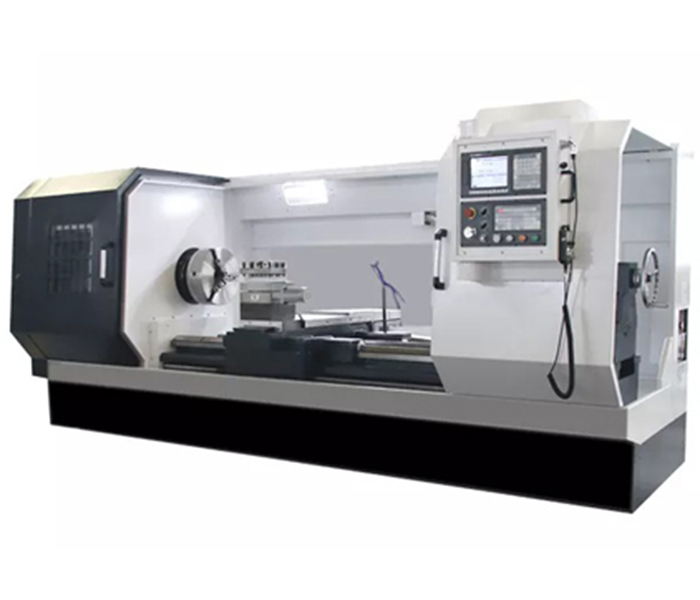

The CK6152E series features a gearbox drive system.
In conclusion, both belt drive and gearbox drive have their own advantages and disadvantages. In the design and application of CNC lathes, engineers need to consider various factors comprehensively to select the most suitable transmission method, ensuring optimal performance and machining results.
