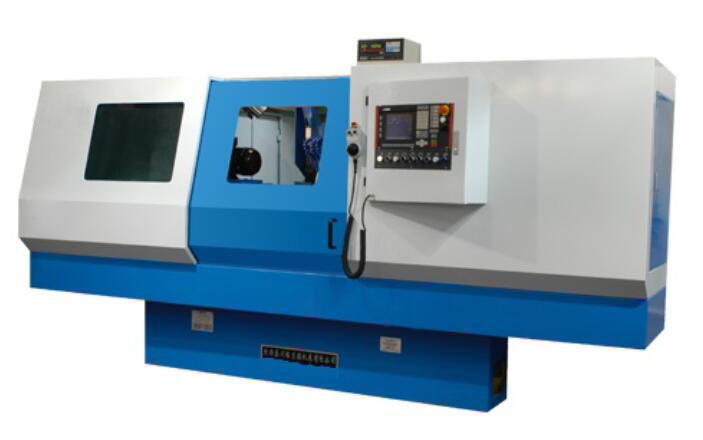

cylindrical steel milling plate surface grinding machine
Product Features:
The machine is suitable for grinding shaft parts, which is simultaneous 2 axes, i. e wheelhead feeding axis X and longitudinal moving axis Z of worktable, and the 2 axes can realize CNC simultaneous, FANUC~0i T series special system of grinder is equipped, CNC interpolation is employed during grinding wheel dressing, which can guarantee consistency of grinding condition.
The spindle system employs combined hydrodynamic and hydrostatic press bearing unit. The tailstock spindle employs sleeve type structure, and headstock adopts AC frequency converter to control. Which can realize stepless speed regulation in certain range.
The machine is equiped with on-line automatic measuring system (axial positioning and cylindrical measuring) to realize closed loop control from machining to measuring.
The machine employs fully closed safeguard. (top of rear bed is open), and the control panel is set on right of the machine to meet the requirement of ergonomics.
The machine can realize automatic grinding circle of workpiece in one set-up, and the whole grinding process is controlled by CNC system ( can also be measured by mesuring meter on line). The grinding circle and dressing circle can convert automatically according to the program.
It can be according to the special requirements of the user design,manufacture of helical gear, rack accessories processing accessories,gear processing accessories, burr removing device and automatic feeding device and so on. The machine tool is especially suitable for mass production of automobile, motorcycle, engineering machinery, production of professional gear and machine tool industry in various production batches to use.
|
Techincal Specification
|
||||
|
Max. grinding diameter
|
mm
|
Ø200
|
||
|
Min. grinding diameter
|
mm
|
Ø5
|
||
|
Max. grinding length
|
mm
|
500/750
|
||
|
Max. workpiece diameter for external
|
mm
|
Ø240
|
||
|
Center high
|
mm
|
125
|
||
|
Max. workpiece weight
|
kg
|
50
|
||
|
Workhead speed
|
r/min
|
30~300
|
||
|
Max. movement of wheelstock
|
mm
|
260
|
||
|
Max. longitudinal travel of table
|
mm
|
810/1050
|
||
|
Wheel size (I.DxW)
|
mm
|
Ø305×100
|
||
|
Wheel speed
|
m/s
|
(Orconstant linear speed) 45m/s
|
||
|
Tailstock displacement
|
mm
|
30
|
||
|
Center
|
Morse
|
No.4
|
||
|
Total power of motors of machine
|
kW
|
14.5
|
||
|
Total power of motors of workhead
|
kW
|
1.1
|
||
|
Total power of motors of wheelhead
|
kW
|
7.5
|
||
|
Outline dimension of machine
|
mm
|
3930x2305x1900
|
||
|
Net weight
|
kg
|
5000
|
||
|
Working accuracy
|
||||
|
Roundness
|
mm
|
0.0015
|
||
|
Uniformity diameter of in longitudinal section
|
mm
|
0.005
|
||
|
Roughness
|
µm
|
Ra0.2
|
||
|
Main accessories
|
||||
|
Wheel balancing arbor
|
set
|
1
|
||
|
End positioner
|
set
|
1
|
||
|
Wheel lisfter
|
set
|
1
|
||
|
Wheel with flange
|
sets
|
2
|
||
|
Wheel dismount tool
|
set
|
1
|
||
|
Measuring plate
|
set
|
1
|
||
|
Driving dog
|
set
|
1
|
||
|
Parallel wedge
|
sets
|
13
|
||
