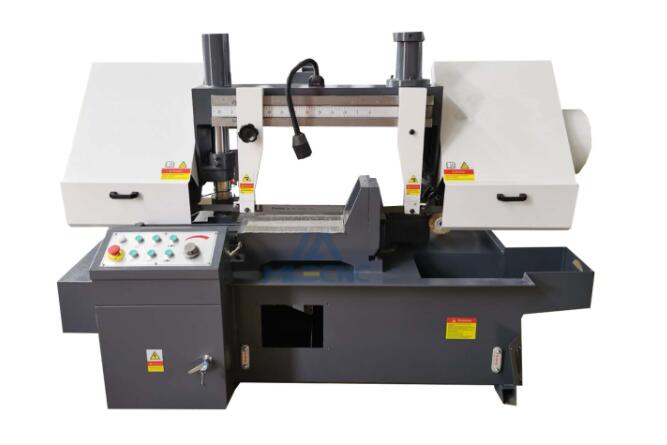

Main features:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
|
MODEL
|
GH4220A
|
GH4228
|
GH4235
|
|
Cutting capacity
|
200-200×200
|
280-280×280
|
350-350×350
|
|
Blade speed
|
27 \ 45 \ 69
|
27 \ 45 \ 69
|
27 \ 45 \ 69
|
|
Blade size
|
2800×27×0.9
|
3505×27×0.9
|
4115×34×1.1
|
|
Motor main
|
1.5
|
2.2
|
3
|
|
Motor hydraulic
|
0.55
|
0.55
|
0.55
|
|
Coolant pump
|
0.04
|
0.04
|
0.04
|
|
Workpiece clamping
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
