Anchor pallet hydraulic press machine is a special equipment used to produce anchor pallet (also known as anchor cable pallet, mining support pads, etc.), which is widely used in coal mines, metal mines, tunneling projects and other fields. Its structure type is mainly divided into four-column type and frame type. Its model is usually determined by the size and dimensions of the pallet, such as 200 tons, 315 tons, 400 tons, 500 tons, 630 tons, 800 tons and so on. These hydraulic press machine can be matched with automated production lines according to customer needs. So, what factors need to be considered when choosing anchor pallet hydraulic press machine?
1. Anchor pallet hydraulic press machine performance: choose the anchor pallet hydraulic press machine equipment with the actual needs, such as maximum pressure, stroke and speed. Ensure that the hydraulic press machine can provide sufficient pressure and speed to complete the anchor pressing work.
2.Structure type: anchor pallet hydraulic press machine mainly has four-column and frame type two kinds of structure. Four-column structure is compact, sensitive and reliable action, small energy consumption, economical and practical, and is also the current choice of more models of structure; frame structure of good rigidity, high precision, good openness before and after, suitable for high-precision requirements of the anchor pallet stamping needs.
3.Convenience of operation: choose an anchor pallet hydraulic press machine that is easy and convenient to operate, such as a hydraulic press machine with a human-machine interface, remote control or foot switch. This will improve operational efficiency and work safety.
4.Safety: choose the hydraulic press machine with safety protection devices, such as overload protection, emergency stop and guard. Ensure the safety of operators and equipment.
5.Quality and brand reputation: choose the hydraulic press machine manufacturer or manufacturer with reliable quality and good brand reputation to ensure product quality and after-sales service.
Recently, Shanghai ANTISHICNC team received an inquiry from a mining equipment manufacturer, according to the customer’s needs, we recommended 315 tons frame type anchor pallet hydraulic press machine to the customer.

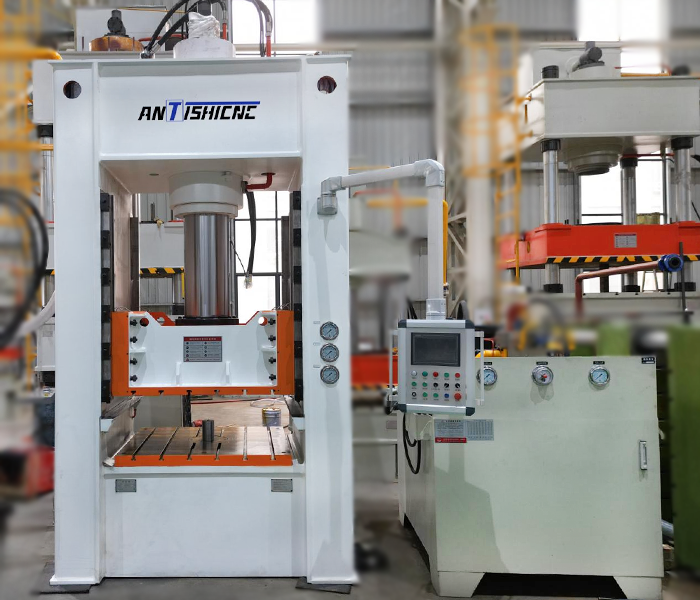

Features of 315 tons frame anchor pallet hydraulic press machine:
1.315 tons anchor pallet hydraulic machine body adopts gantry frame structure: composed of upper crossbeam, slider, worktable, main cylinder, hydraulic power system and electrical system and other components. The upper crossbeam, slider and working table are welded with high quality steel plate, after welding, the welding stress is eliminated by high frequency vibration, the column is high quality 45# steel, the surface is medium frequency quenching and chrome plating treatment.
2.The tonnage of the pressing cylinder of the 315-ton frame hydraulic press machineis realized by a piston cylinder. The cylinder body is made of high-quality forged steel, and the surface of the piston rod is processed by intermediate-frequency quenching, which is of high hardness and long service life. The main seals of the cylinder adopt high-quality seals to ensure reliable sealing.
3.T-shaped slots are provided on the working table and slider of 315-ton frame-type hydraulic press machine, which is convenient for users to install molds. The whole steel plate welding frame type rack is adopted, with good overall rigidity and high compressive strength.
4.Pressure, stroke, holding pressure, etc. can be adjusted according to the requirements of the pressing process.
5.It has different derivatives such as lower top material, upper item material, upper and lower composite top material or shallow drawing depth, which is applicable to the needs of various pressing and forming processes.
6.Using the lower oil tank, it is convenient to replace and clean the oil tank.
7.The frame and movable working table have high guiding precision, good rigidity and strong lateral force resistance, especially suitable for pressing symmetrical products.
8.The oil cylinder adopts whole forging and precision grinding, which is highly reliable under high pressure.
| Description | Unit | YQ34-315T |
| Nominal force | KN | 3150 |
| Working table size | mm | 700*700 |
| Maximum opening height | mm | 600 |
| Slider stroke | mm | 400 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have the anchor tray molding processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machine and can provide you with professional technical support.
