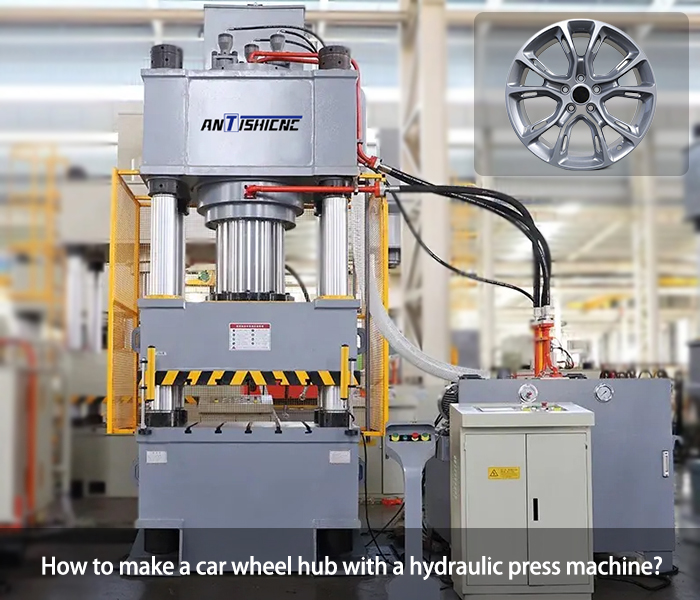

Car wheel hub is an important part of car, which plays a vital role in carrying weight, affecting driving performance, safety and appearance. hydraulic press machine is an important machine for making car wheels, which is characterized by high productivity, high precision and energy saving. So how to make car wheel hub with hydraulic press machine?
1.Selects the material for making the wheel, and cuts the material so that it is of the size required for making the wheel.
2.Places the cut material in a heating furnace to heat it to a certain temperature for subsequent forging.
3.The prepared blank is placed in the center of the die for pressing. According to the yield strength of the material and the complexity of the shape of the wheel, control the pressure and pressing speed of the hydraulic press machineto ensure the integrity of the shape of the wheel. After pressing is completed, the formed wheel is removed from the mold. In the process of demolding, pay attention to avoid damage to the hub.
4.Clean the wheel hub after demolding to remove oil, impurities and mold release agent residue on the surface. At the same time, check the appearance of the wheel hub and trim some slight flying edges and burrs. According to the need, the wheel hub can also be painted, plated and other surface treatment to enhance its corrosion resistance and aesthetics.
Shanghai ANTISHICNC is a professional manufacturer of hydraulic press machines. Shanghai ANTISHICNC production of car wheel hub molding hydraulic press machine using PLC and servo control system, can realize the fixed pressure, fixed range of two kinds of molding process, with pressure preservation delay function, with high efficiency, energy saving, low noise, less heat, high control accuracy, easy maintenance characteristics, by the customer’s praise. For example, the following 1000 tons hydraulic press machine.

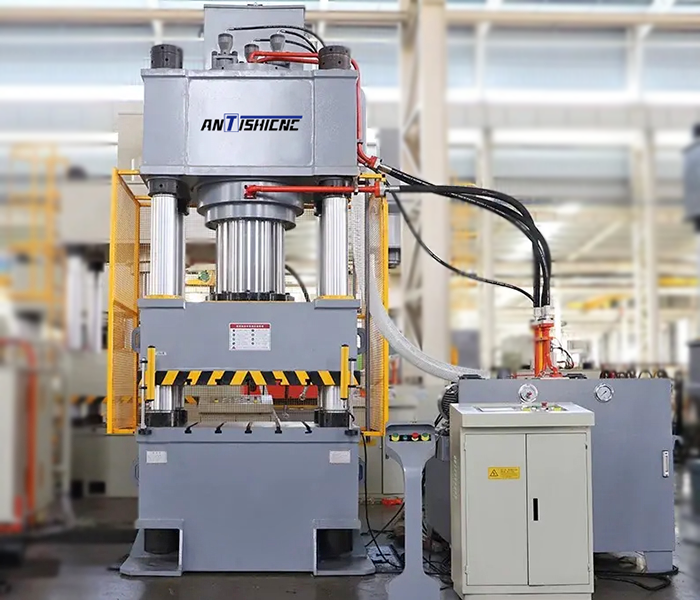

(The picture for reference only)
1000 tons four column hydraulic press machine is mainly composed of three main parts: main machine, hydraulic system and control mechanism. The mainframe includes machine body, oil cylinder, oil tank and so on. Hydraulic system includes motor, oil pump, valve block, valve parts, piping and so on. Control system includes motor, oil pump, valve block, valves, pipelines, etc. The control mechanism includes range-limiting devices, pipelines and electrical control box, etc. 1000 tons of four-column hydraulic press machine is suitable for metal material stretching on the punch (should be equipped with punch buffer), bending, flanging, cold extrusion and other kinds of stamping process, but also suitable for the more positive, pressure mounting, powder products and abrasive products, as well as plastic products, insulating materials, pressed into the molding.
1000 tons four-column hydraulic press machine features:
1.Four-column structure, good rigidity, high precision, compact structure, economical;
2.Hydraulic control using cartridge valve integrated system, less leakage points, small impact, reliable action, can effectively protect the mold and the service life of the equipment;
3.Professional cylinder sealing elements, high reliability and long service life;
4.Guide rail automatic lubrication device, fully protect the guide pillar, maintain precision;
5.Electromechanical integration safety devices, such as: cylinder lower chamber support circuit, cylinder upper and lower chamber interlocking circuit, etc., have good safety;
6.The electrical system of 1000-ton hydraulic press machineadopts PLC control, which can realize one-key operation and the process is simple and easy to operate;
7.It can realize two kinds of molding process: fixed-pressure and fixed-range, and it has the function of holding pressure and delaying time;
8.According to different processes, the working pressure and stroke can be adjusted in a certain range, simple and easy to operate.
| Description | YQ32-1000T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 900 |
| Maximum opening height (mm) | 1500 |
| Table size (mm) | 1500*1500 |
| Down speed of empty range (mm/s) | 120 |
| Working speed (mm/s) | 6-12 |
| Return speed (mm/s) | 80 |
| Motor power (kw) | 37*2 |
| Oil pump displacement (ml/R) | 160*2 |
| Jacking force (T) | 125 |
| Ejection stroke (mm) | 350 |
| Approximate weight (T) | 33 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have car wheel hubs forming processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machine and can provide you with professional technical support.
