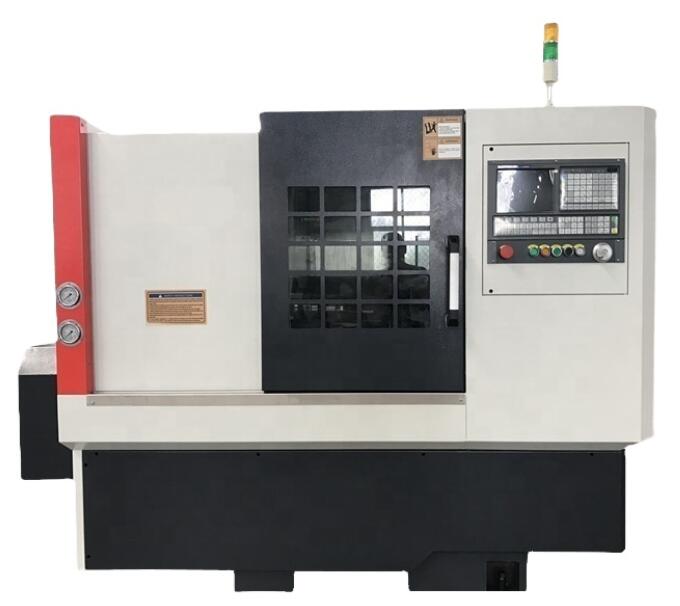

Machine model
|
TCK50A/500
|
TCK50A/800
|
Maximum turning diameter of bed
|
560mm
|
560mm
|
Maximum turning diameter of cross slide
|
260mm
|
260mm
|
Maximum processing length
|
500mm
|
500mm
|
Maximum machining diameter (disk type)
|
/
|
440mm
|
Standard chuck specifications
|
10 inches
|
10 inches
|
X axis maximum stroke
|
240mm
|
260mm
|
Z axis maximum stroke
|
540mm
|
900mm
|
Spindle speed
|
3000rpm
|
3000rpm
|
Spindle speed stage
|
Continuously variable speed
|
/
|
Spindle end code
|
A2-6
|
A2-8
|
Spindle through hole
|
66mm
|
86mm
|
Pull tube through hole
|
55mm
|
75mm
|
Fast moving speed
|
X:18m/min Z:18m/min
|
X:18m/min Z:18m/min
|
Cutting feed rate
|
1-15000mm/min
|
/
|
X/Z motor torque
|
10/10mm(X direction with brake)
|
10/10mm(X direction with brake)
|
Spindle motor power
|
11kw
|
15kw
|
Sleeve diameter
|
70mm
|
90mm
|
Sleeve stroke
|
80mm
|
80mm
|
Taper hole of tailstock sleeve
|
Mohs 5#
|
Mohs 5#
|
Maximum stroke of tailstock
|
450mm
|
750mm
|
Total power capacity
|
18KVA
|
18KVA
|
Cutting water tank capacity
|
90L
|
90L
|
Dimensions (length × width × height)
|
2600*1850*2000mm
|
3250*1860*2000mm
|
Total Weight
|
3000KG
|
4000KG
|
CNC system
|
use Guangzhou CNC, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc
|
|
Clamping method
|
10-inch hollow hydraulic chuck
|
|
Tool post
|
8-station hydraulic turret, optional servo turret
|
