In the use of hydraulic pipe bending machine, sometimes there will be a machine oil leakage, which affecting the use of the pipe bending machine. So how to solve the problem of hydraulic pipe bending machine oil leakage?
1.In the hydraulic pipe bending machineback to the pool of oil on the end of the cover to dig a small hole and weld a shut-off valve in the operation of the operation of the shearing machine operating procedures on the addition of another: the shut-off valve should be closed when the power on, each time after the end of the shear and immediately open the valve in order to facilitate the leakage of nitrogen leakage to the pool of nitrogen discharged into the atmosphere in a timely manner.
2.When the manual button or foot switch is released, at this time the hydraulic oil in the lower post is pressed back to the oil pool by the downward movement of the piston of the nitrogen accumulator and the piston of the main cylinder is moved upward through the oil circuit to make the cutter frame rise, and the hydraulic oil in the upper chamber is returned to the oil pool through the main circuit.
3.When it is found difficult to lift the tool holder, the accumulator should be replenished with nitrogen.
4.Replace the O-ring in the accumulator with nitrogen if the tool holder lifts very slowly.
5.Replace the piston in the accumulator when nitrogen filling is frequent.
Shanghai ANTS Machine Equipment Co. specializing in the production of CNC pipe bending machine, hydraulic pipe bending machine and other equipment. Shanghai ANTISHICNC of the production of pipe bending machine with high quality, high precision, easy to operate, well received by customers around the world. For example, the following hot hydraulic pipe bending machine DW75NC.

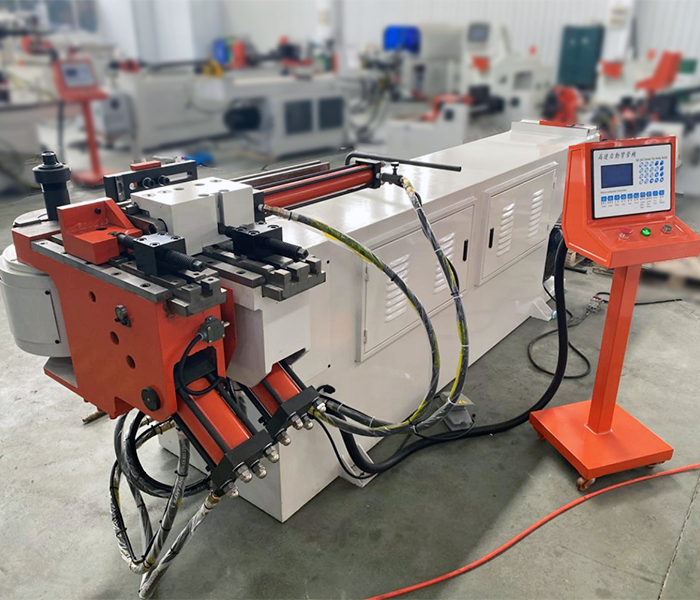

DW75NC is a hydraulic pipe bending machine, the oil tank adopts closed design to ensure clean oil; the headstock structure adopts the split design of the guide mold seat, good abrasion resistance; the encoder adopts hidden design, less interference, high precision.
| Main specifications | Unit | DW75NC | Remark |
| Max. bending diameter x Wall thickness | mm | Φ75×3 | 1. The minimum bending radius is based on the pipe diameter
2. The maximum bending radius can be determined according to customer requirements |
| Max. bending radius | mm | R400 | |
| Mini. bending radius | mm | Depending on the pipe diameter | |
| Max. bending Angle | Degree | 190 | |
| Standard core length | mm | 2600 | |
| Control system | / | Microcomputer control | |
| Number of elbow allowed for pipe fitting | Unit | 16 | |
| Number of parts that can be stored | Unit | 16×16 | |
| Oil motor power | KW | 7.5 | |
| Max system pressure | Mpa | 12 | |
| Hydraulic system control | Solenoid valve | ||
| Tank volume | L | 250 | |
| Machine dimensions | mm | About 3200×900×1200 | |
| Machine weight | Kg | About 1900 |
If you have pipe bending needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using pipe bending machines and can provide you with professional technical support.
