How to use machining center to process metal gears?

Recently, one of Shanghai ANTS Machine Equipment Company’s end customers needed to purchase a CNC machining center to process automotive gear parts. The work piece size required was 700*400mm.

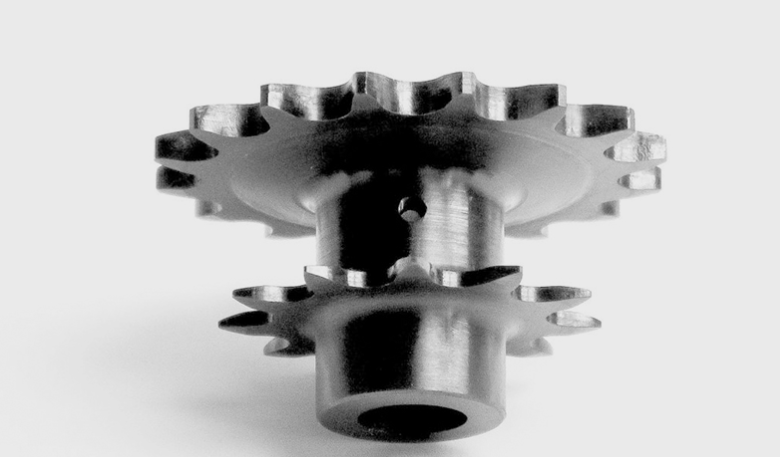

Metal gears are widely used in automobile transmissions, differentials and other parts. By combining cylindrical gears of different sizes, different transmission ratios can be achieved to meet the power requirements of the car at different speeds. As shown in the figure:

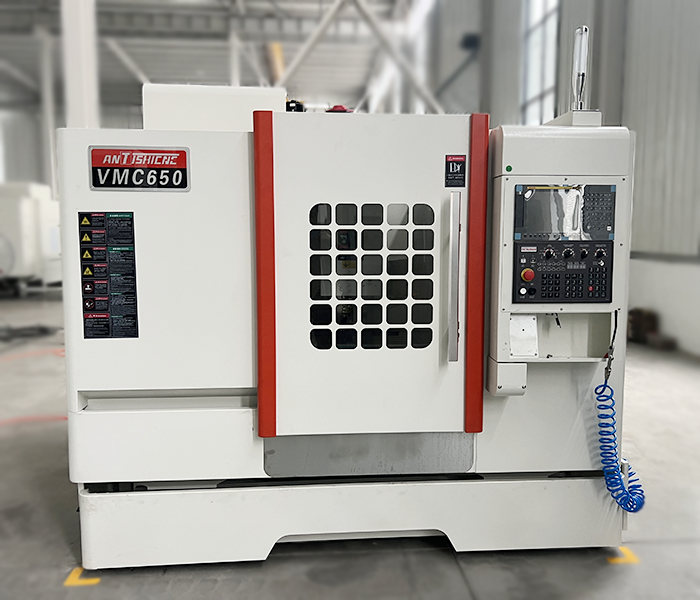

According to the customer’s needs, ANTISHICNC engineers successfully matched a machining center for the customer – VMC650, with a maximum disc processing diameter of 800mm. It comes standard with 24 tools and a GSK system. The following are the basic parameters of VMC650:

Shanghai ANTISHICNC engineers will introduce you to the detailed processing process:

1.Tool setting operation

Install the selected tool on the spindle of the CNC milling machine and perform tool setting operation. The purpose of tool setting is to determine the position of the tool in the machine tool coordinate system so as to accurately control the movement and cutting of the tool. Tool setting is usually performed using a tool setting instrument or trial cutting method.

2.Program debugging

Before formal processing, program debugging is performed first. Check the correctness and rationality of the program by simulating processing or running the program dry. Observe whether the tool’s motion trajectory meets expectations and whether there are interference and other problems. If there are any problems, make adjustments and modifications in time.

3.Cutting processing

After the program is debugged correctly, start the CNC milling machine for cutting processing. During the processing, pay close attention to the operating status of the machine tool, such as cutting force, temperature, vibration, etc. Adjust the cutting parameters in time according to the actual situation to ensure processing quality and efficiency. At the same time, pay attention to the wear of the tool and replace the tool with severe wear in time.

4.Quality inspection

During the processing or after the processing is completed, the workpiece should be inspected for quality. Use measuring tools (such as calipers, micrometers, three-coordinate measuring machines, etc.) to measure the size, shape, position accuracy, etc. of the workpiece. If quality problems are found, analyze the causes in a timely manner and take appropriate measures to make adjustments.

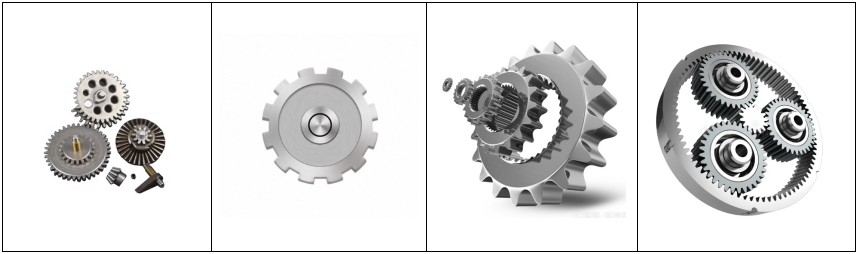

Next, we will introduce you to common metal gears. If you have any questions, please contact Shanghai ANTS Machine Equipment Co., Ltd. through our website information. Engineers will match you with efficient machine tools and professional services.
