Features:
high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range.
These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity

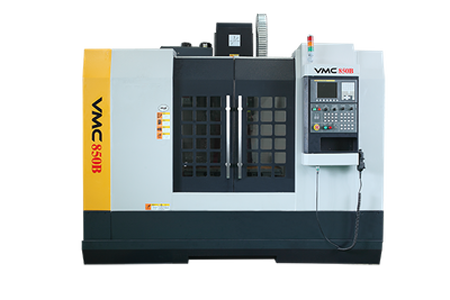

VMC850B：Rectangular hardened sliding guideways of 3-axes.
VMC850L：Linear guideways are used in X and Y axes while rectangular hardened sliding guideways in Z-axes.
VMC850HL/H：Linear roller ways and silence lead screws from famous makers are used for X, Y and Z axes.
| Spec. |
Unit |
VMC850B |
VMC850L |
VMC850HL |
VMC850H |
| Work table |
Dim. of table(W×L) |
mm |
500×1050 |
500×1000 |
500×1050 |
| T-slot (num.-size × space) |
mm |
5-18×90 |
5-18×80 |
| Permissible load |
kg |
600 |
450 |
500 |
| Spindle |
Spindle taper hole |
/ |
ISO 40 |
| Power of main motor (cont./15min overload) |
kW |
7.5/11 |
| Top speed of spindle |
r/min |
8000 |
12000 |
| Travel |
X-axis right and left travel |
mm |
800 |
| Y-axis back and forth travel |
mm |
500 |
| Z-axis up and down travel |
mm |
550 |
500 |
600 |
| Distance of spindle nose to table face |
mm |
105-655 |
80-680 |
110-710 |
| Distance of spindle center to column way |
mm |
550 |
560 |
570 |
| Feed |
X/Y-axis rapid traverse |
m/min |
16 |
24 |
32 |
48 |
| Z-axis rapid traverse |
m/min |
12 |
15 |
30 |
48 |
| Max. cutting federate |
mm/min |
10000 |
| Magazine |
Capacity of magazine |
pcs |
16/20/24 |
16 |
24 |
| Max. tool weight |
kg |
8 |
| Accuracy |
Repeatability (JIS) |
mm |
±0.008 |
| Positioning accuracy (JIS) |
mm |
±0.003 |
| Others |
Air source |
L/min |
250 |
| Air pressure |
MPa |
0.6 |
| Gross weight of machine |
kg |
5500 |
6500 |
6500 |
| Net weight of machine |
kg |
5000 |
6000 |
6000 |
| Dimensions of machine (L×W×H) |
mm |
2700x2300x2630 |
2700x2500x2650 |
2800x2450x3050 |
2800x2450x3050 |
