Technical parameter
| Specifications | HS7125 | HS7132 | HS7140 | HS7150 |
| Round bar | 250mm | 320mm | 400mm | 500mm |
| Square bar | 220×220mm | 290X290mm | 330X330mm | 400X400mm |
| Oblique saw | 45° | 45° | 45° | 45° |
| Sawing speed | 43,50,60,86,100,120 | 39,60,70 | 39,60,70 | 39,60,70 |
| Blade size | 450×45×2.25mm | 600X50X2.5mm | 650X55X2.5mm | 750X63X2.5mm |
| Main Motor | 2.4/3.0 kW | 3.0KW | 4.0KW | 4.0KW |
| Coolant pump motor | 0.04 kW,2 Poles | 0.04 kW,2poles | 0.04 kW,2Poles | 0.04 kW,2 Poles |
| Saw blade rapid down | 0.25 kW,4 Poles | 0.25 kW,4Poles | 0.25 kW,4Poles | 0.25 kW,4 Poles |
| Packing size | 190×89×125cm | 244X92X153cm | 244X92X153cm | 268X100X160cm |
| N.W./G.W. | 598/690KG | 1135/1275KG | 1200/1450KG | 1365/1540KG |
Equipment Introductions
Hydraulic Hack Saw also called Bow sawing machines are not considered to be metal band sawing machines. A bow sawing machine uses a saw blade on a bow in a reciprocating motion to cut metal materials. Its saw blade movement is driven by a crank linkage mechanism to carry out linear reciprocating motion of the saw bow, the saw blade is wider and shorter.
While the metal band sawing machine is to use the continuous movement of the circular saw band to cut metal, the saw band is circular, the movement is a continuous circular movement, the cutting process is relatively more stable and efficient, the saw slit is also narrower.
Bow saw blades are generally made of high speed steel material.
HSS has high hardness, high wear resistance and good thermal hardness. In the sawing process, the saw blade and metal material violent friction will produce a lot of heat, high-speed steel can maintain its hardness at higher temperatures, still effective sawing work, thus extending the service life of the saw blade.
Features
1.500mm round cutting capacity, square max. 400x400mm
2.3 cutting speed to suit different material
3.Hydraulic down feed
4.Comes with stop rod to get the repeatable cutting
Main Parts & Standard Equipment
Saw blade
Coolant system
Material stand

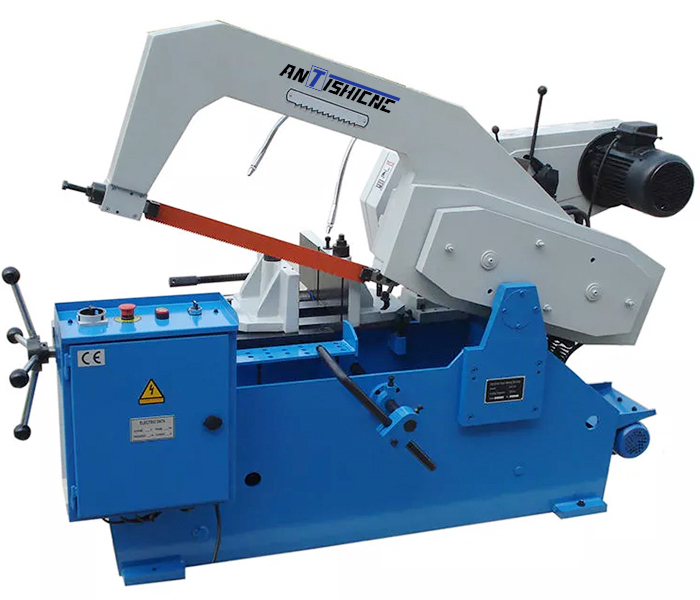

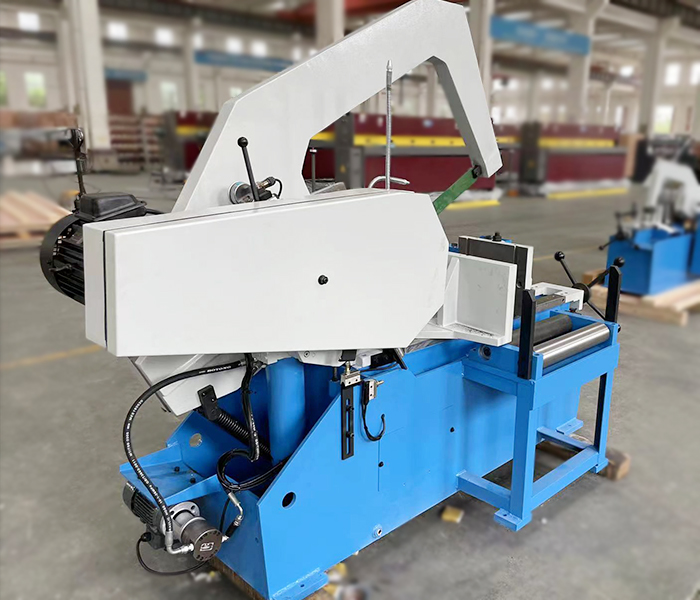

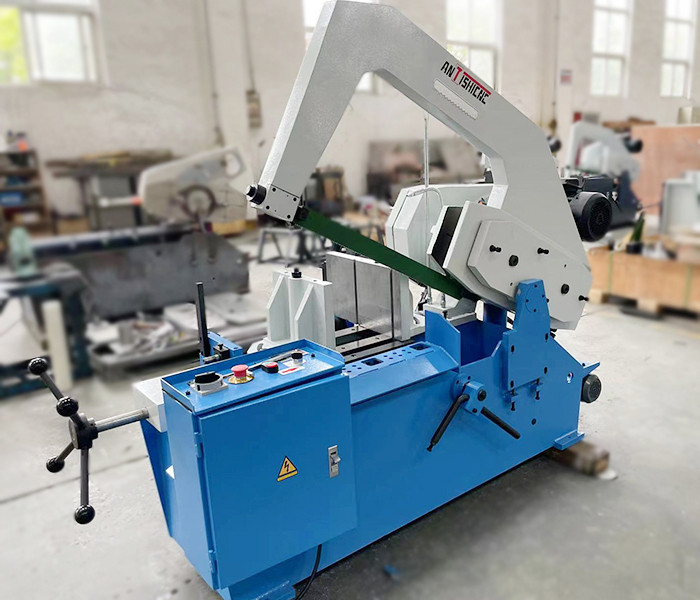

Product pictures
 |
 |
