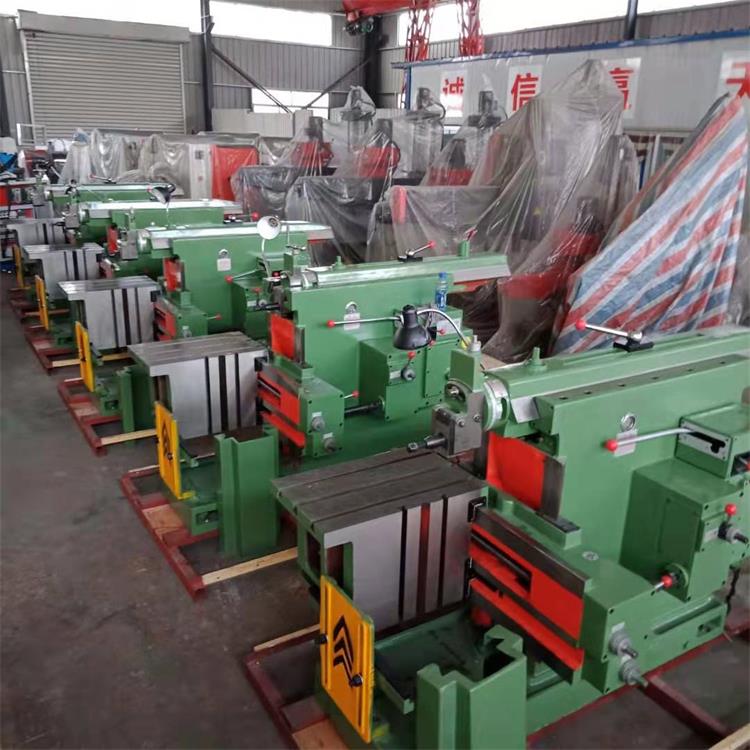

Gear Shape Machine Main features
1. Optimized principle design, machine appearance and easy operation.
2. The vertical and horizontal guide rails adopt rectangular guide rails for better stability.
3. The use of advanced super-audio frequency quenching technology makes the life of the machine longer.
4. It is suitable for planing the plane, T-slot and forming surface of various small and medium-sized parts, and can be used for single-piece and mass production.
|
Specifications for B6063/6066 Shape machine
|
||
|
Model
|
|
BC6063/6066
|
|
Maximum cutting length
|
mm
|
630/660
|
|
Maximum distance from ram bottom to table surface
|
mm
|
385
|
|
Maximum table horizontal travel
|
mm
|
630
|
|
Maximum table vertical travel
|
mm
|
360
|
|
Dimensions of table top surface(L×W)
|
mm
|
630×400/660×400
|
|
Travel of tool head
|
mm
|
120
|
|
Number of ram strokes per minute
|
|
14,20,28,40,56,80
|
|
Swivel of tool head
|
°
|
±60°
|
|
Maximum size of tool shank(W×T)
|
mm
|
20×30
|
|
Range of table power feed
|
horizontel
|
0.2~2.5
|
|
Vertical
|
0.08~1.00
|
|
|
Width of central T-slot of table
|
mm
|
18
|
|
Power of motor
|
|
3
|
|
Overall dimensions(L×W×H)
|
mm
|
2342×1225×1480
|
|
mm
|
2357×1225×1480
|
|
|
N.W/G.W(kg)
|
kg
|
1750/1870 /1800/1920
|
