Characteristics of machine tools:
Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise. safe commutation 5000000 times, the electriccontrol part with electronic switching frequency switching, The service life 10 times longer than the relay control, simple operation, sensitive,infinitely variable; large output torque, low noise, Safe and reliable. Power supply use a number of mechanical and electrical protectionfunction which is safe voltage, Energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6.When the manual grinding is working Before and after the workbench’s movement, in and out, around the reversing are automatic operation, greatly improving the production’s efficiency and the surface finish, suitable scope that from the original single.
|

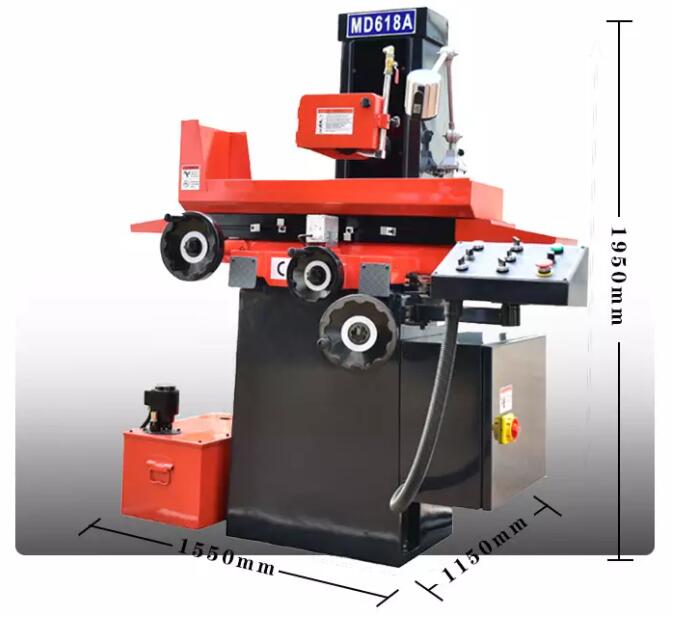

Model
|
Unit
|
MD618
|
MD820
|
||
|
Bench
|
Max.workpiece to be Ground(1.XWXH)
|
m
|
460×1 80
|
480*200
|
|
|
Maximum travel of table(L X W)
|
m
|
500×1 90
|
830*220
|
||
|
Table maximum cutting area(LX W)
|
m
|
500×1 90
|
520*220
|
||
|
Number of T-Slot
|
mm
|
1×14
|
1×14
|
||
|
Tho grinding head
|
Distance from Table Surface To Spindle Center
|
mm
|
335
|
450
|
|
|
Wheel Size(dia X width X bore)
|
mm
|
φ200x20xφ31 .75
|
φ200x20xφ31 .75
|
||
|
Spindle speeds (50HZ)
|
r/m
|
2800
|
2800
|
||
|
The amount of feed
|
Table longitudinal (left and right) speed (stepless)
|
m/min
|
3–23
|
3–23
|
|
|
Table horizontal (before and after) the amount of feed
|
Continuous (variable speed)
|
mm/min
|
150
|
150
|
|
|
Intermittent (stepless)
|
mm
|
0-5
|
0-5
|
||
|
The handwheel rotatos
|
mm
|
2.5
|
2.5
|
||
|
Hand wheel each grid
|
mm
|
0.02
|
0.02
|
||
|
Vertical (up and down) feed
|
The handwheel rotates
|
mm
|
1 .25
|
1 .25
|
|
|
Hand wheel each grid
|
mm
|
0.01
|
0.01
|
||
|
Reversing feeder
|
The total input power
|
w
|
150
|
150
|
|
|
X-feeder outout speed
|
/min
|
0–225
|
0–225
|
||
|
X-feeder size
|
m
|
280*130*120
|
280*130*120
|
||
|
X-feeder outout speed
|
/min
|
0–120
|
0–120
|
||
|
X-feeder size
|
m
|
280*130*120
|
280*130*120
|
||
|
Motor power
|
Spindle motor
|
kw
|
1.1
|
1.5
|
|
|
Cooling motor
|
w
|
40
|
40
|
||
|
Weight of machineworking precision
|
The machined surface of the base of parallelism
|
mm
|
300/0.005
|
300/0.005
|
|
|
Surface Roughness
|
μm
|
Ra0.32
|
Ra0.32
|
||
|
Net
|
T
|
0.75
|
0.80
|
||
|
Cross
|
T
|
0.80
|
0.89
|
||
|
Packingsize (LxWxH)
|
Mm
|
1060x1170x1870
|
1680x1200x1900
|
||
|
External size (L * w * h)
|
mm
|
1960×1480×1850
|
|||
|
Packing size (L * w * h)
|
mm
|
2000×1640×2020
|
|||
