The horizontal boring and milling machine is a precision machining equipment integrating boring, milling, drilling, and tapping functions. Its core feature is a horizontally arranged spindle, suitable for machining various large and complex box-shaped parts.
Its worktable can achieve multi-axis linkage, possessing high-precision positioning and feed capabilities. It can complete hole machining, plane milling, thread machining, and other processes, and is widely used in machinery manufacturing, rail transportation, energy equipment, and other fields. The equipment has high rigidity and can withstand large cutting loads. Machining accuracy can reach IT6-IT7 level, meeting the stringent tolerance requirements for hole spacing, parallelism, and perpendicularity of box-shaped parts.

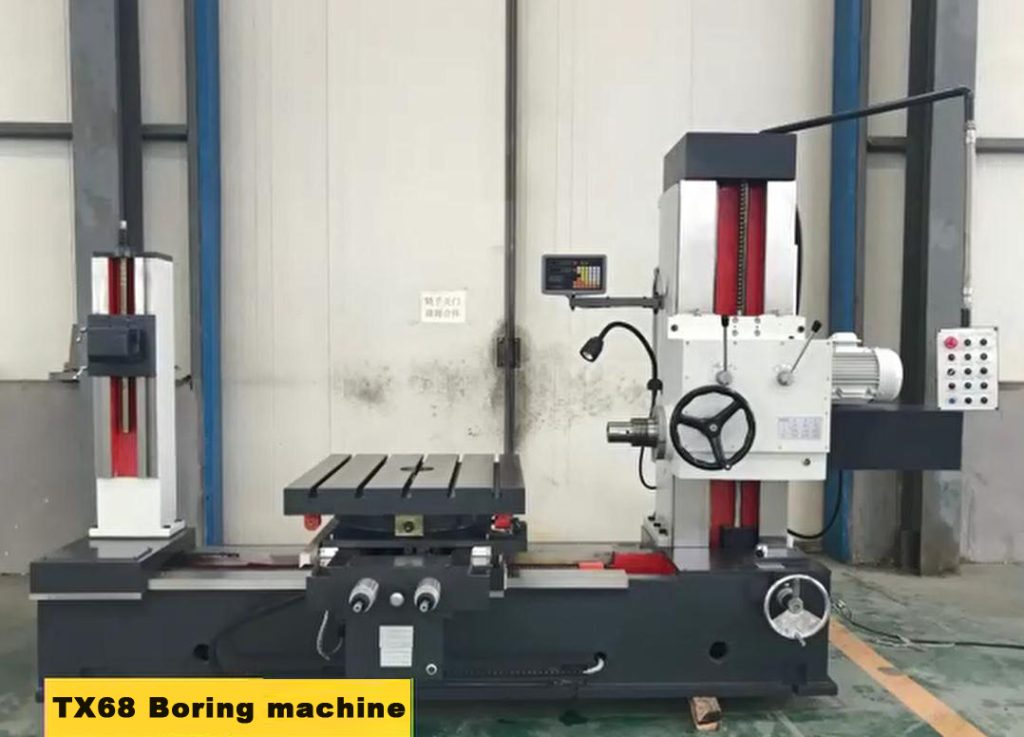

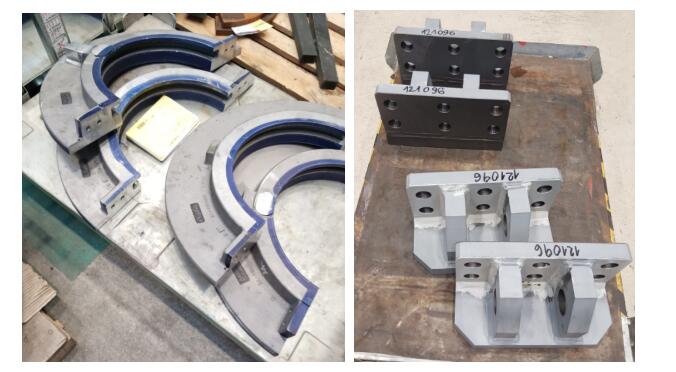

Recently, ANTISHICNC team received an inquiry from a customer who wanted to machine the following parts, requiring milling the contact surface into two halves, drilling, and tapping. After further communication with the customer regarding their needs, we recommended the TX68 horizontal boring and milling machine.
| Model | TX68 |
| Spindle Diameter | 85mm |
| Spindle Taper | MT5 |
| Spindle Speed | 10-1000 (18 steps) |
| Spindle travel | 400 |
| Main Motor Power | 5.5KW |
| Table Area | 800X900mm |
| Table Feed Rate | 5-160mm/min (6 steps) |
| Table Rapid Feed | 2000mm/min |
| Spindle Lifting Speed | 50/400mm/min |
| Spindle Head Travel (Y) | 700mm |
| Table Longitudinal Travel (X/Z) | 700*1400mm (Without tailstock) |
| Machine Tool Weight | 5T |
| Digital Display (X/Y) | YES |
If you have similar machining needs or any questions about horizontal boring and milling machines, please feel free to contact ANTISHICNC at contact@antsmachine.com.
