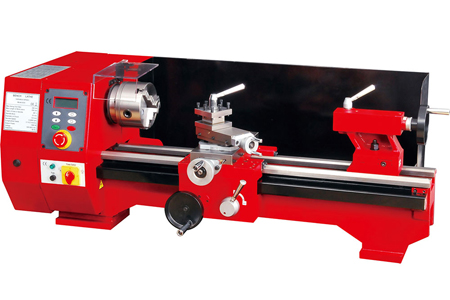

SC6 Bench Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Swing over bed |
250 mm |
| Distance between centers |
550 mm |
| Hole through spindle |
20 mm |
| Spindle taper |
MT3 |
| Tailstock taper |
MT2 |
| Spindle speed (variable speed) |
125-2000 ±10% rpm |
| Compound travel |
75 mm |
| Cross slide travel |
110 mm |
| Motor output power |
1000 W (Brushless Motor) |
| Thread range Metric version |
0.4-3.0 mm (12 threads pitches) |
| Imperial version |
10-44 TPI ( 8 threads pitches) |
| Overall dimension (LxWxH) |
1100x550x420 mm |
| Weight (Net/Gross) |
145/180 kg |
| Packing size (LxWxH) |
1180x640x570 mm |
Product Description:
• Near silent running
• Integral splash guard
• Metric and Imperial thread cutting

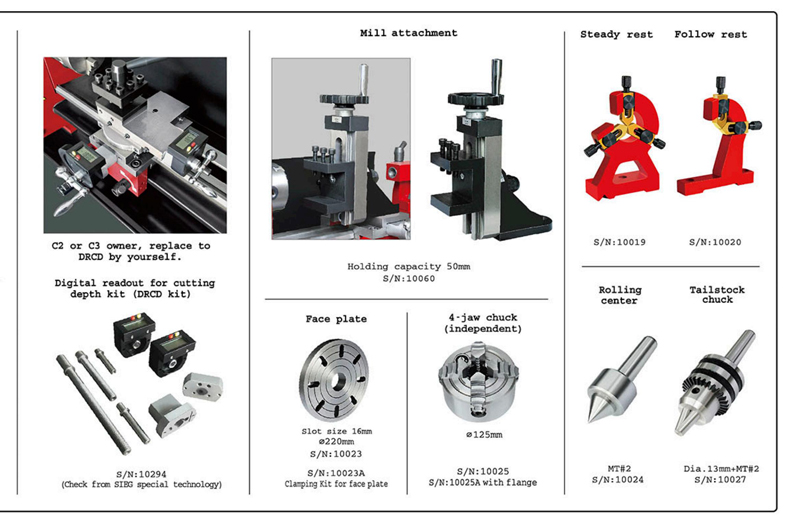

• Full range of accessories available
• 1000W high torque, brushless motor
• 125-2,000 rpm electronic variable spindle speeds
