CNC cylindrical grinder is a kind of high-precision and high-efficiency metal processing equipment, mainly used to process various cylindrical, conical and complex-shaped cylindrical surfaces.It is widely used in machinery manufacturing, automobiles, aerospace, mold manufacturing and other fields, and is one of the indispensable and important equipment in modern industrial production.

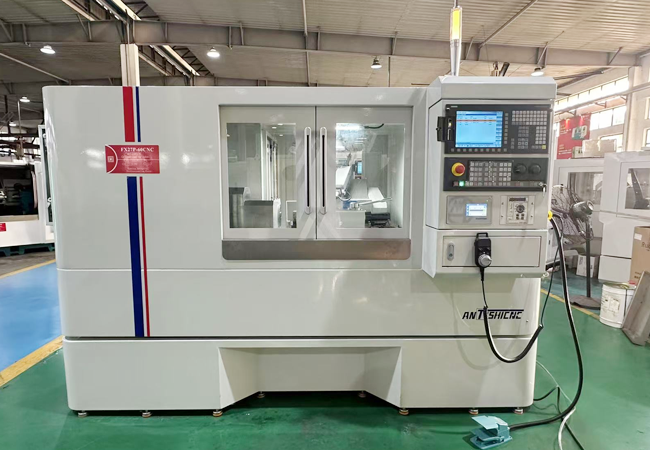

Recently, the Shanghai ANTS team received an inquiry from a shaft workpiece solution manufacturer. The customer needs to process shaft workpieces with a maximum length of 229mm and a maximum diameter of 53mm, and meets the production capacity of 80,000 pieces per year, 22 working days per month, 20 hours a day, 85% of OEE, and sent workpiece drawings. After our technical team discussed the customer’s drawings and requirements in detail, we recommended this FX27P-60CNC high-precision direct-feed CNC cylindrical grinder to meet the customer’s processing requirements.And recommend the customer to purchase 2 units to meet his production needs.
In addition, regarding the accuracy of the machine, in order to meet the accuracy requirements of customers’ products, we have provided customers with several clamping methods for customers to choose from, as well as reasonable practical suggestions.
| ITEM | Unit | FX27P-60CNC | |
|
Processing Capability |
Maximum rotating diameter of worktable | mm | 270 |
| The longest distance between two thimble | mm | 600 | |
| Maximum grinding diameter | mm | 270 | |
| Maximum load between two top centers | Kg(b) | 60(Centers work)
20(Work head work) |
|
| Grinding wheel size (diameter × width × aperture) | mm | 405×40×127(Standard type) | |
| Wheel speed | rpm | 1650 | |
| Maximum linear speed of grinding wheel | m/s | 35 | |
| Wheel dressing | mm | Automatic | |
| Wheel head | Feed angle | Deg | 90 |
| Feed stroke | mm | 260 | |
| X axis feed speed | m/min | 6 | |
| X axis minimum feed | mm | 0.001 | |
| Head stock | Spindle speed | rpm | 50-500 |
| Spindle form | Simultaneous movement or centering | ||
| Thimble specifications | MT-4 | ||
| Tailstock | Automatic telescopic distance | mm | 40 |
| Center specifications | MT-4 | ||
Shanghai ANTISHICNC is a professional manufacturer of CNC Cylindrical grinding machine. We have rich production and processing experience. We can recommend the most suitable grinder for your products and give suitable suggestions for use.
We can provide you with professional technical support.We mainly have Cylindrical grinders, surface grinders, centerless grinders, etc. If you have CNC lathe production needs,please contact Shanghai ANTISHICNC, company email:contact@antsmachine.com
