Inquiry from a Chilean Client in the Oil & Gas Component Sector: Selecting Between Box-Way and Linear-Guide CNC Lathes

We recently received a technical inquiry from a Chilean client specializing in the manufacture of components for oil and gas equipment—specifically valves, wellhead assemblies, and downhole tools. Their operations involve machining high-hardness, difficult-to-cut materials such as 316L and 15-5PH stainless steels, as well as Inconel 718 and Inconel 625 superalloys. While sourcing CNC slant-bed lathes, the client sought advice on how to choose between box-way (hard-rail) and linear-guide models to best suit their specific machining conditions.

To address the client’s needs, we have outlined the core differences based on the structural characteristics and typical applications of both machine types, providing a selection guide for manufacturers of heavy industrial and energy-sector components:

To address the client’s needs, we have outlined the core differences based on the structural characteristics and typical applications of both machine types, providing a selection guide for manufacturers of heavy industrial and energy-sector components:

I.Structural Principles

Box-way (rectangular sliding guideway) systems feature guideways cast integrally with the machine bed; they rely on sliding friction, with hardened cast-iron surfaces lubricated by guideway oil. Linear-guide systems (ball-type linear guideways) utilize standardized, purchased linear guide components that rely on rolling friction via internal ball bearings. These fundamental structural differences directly determine the machine’s rigidity, cutting capacity, and operational performance limits.

II.Comparison of Core Performance and Application Suitability

1. Cutting Rigidity and Vibration Resistance:Box-way systems offer a large contact area, high rigidity, and excellent vibration resistance, making them ideal for heavy-duty cutting with deep cuts. They are particularly well-suited for rough machining of superalloys, stainless steel forgings, and parts with large machining allowances. Linear-guide systems offer moderate rigidity and are better suited for light cutting and finishing operations; prolonged heavy-duty cutting with large stock removal can lead to chatter, which compromises workpiece surface finish.
2. Movement Speed and Production Efficiency:Linear-guide systems feature low frictional resistance and higher rapid traverse speeds, making them suitable for the high-frequency, cyclic finishing of smaller parts. Box-way systems have higher sliding resistance and limited rapid traverse speeds; they do not prioritize extreme rapid movement but excel in stability during heavy-load cutting.
3. Load-bearing capacity and precision retention:Box-way (hard-rail) machines offer higher load capacities, making them suitable for the long-term mass production of large, heavy workpieces; they exhibit slow precision degradation under sustained heavy-duty machining. While linear-guide machines offer excellent static precision out of the factory, their ball-bearing structures are prone to wear under prolonged heavy loads, resulting in weaker precision retention compared to box-way models.
4. Adaptability to chip-heavy environments (a key consideration for oil & gas components):Machining oil & gas alloys generates large volumes of fine, hot metal chips. Box-way machines, with their robust protective structures, are better suited to harsh machining environments. In contrast, linear-guide systems feature tight clearances; if fine chips infiltrate the ball-bearing assembly, they can easily cause permanent damage to the guideways—a risk that is particularly high during rough machining operations.

III. Selection recommendations based on the Chilean customer’s operating conditions

The customer machines high-strength alloys commonly used in the oil & gas industry, such as Inconel 718 and 15-5PH, with production processes involving significant stock removal via rough turning; therefore, a box-way slant-bed CNC lathe is the recommended choice. However, if the customer’s future production line focuses solely on finish machining with minimal stock removal—eliminating the need for roughing—linear-guide models could be considered to enhance cycle efficiency.

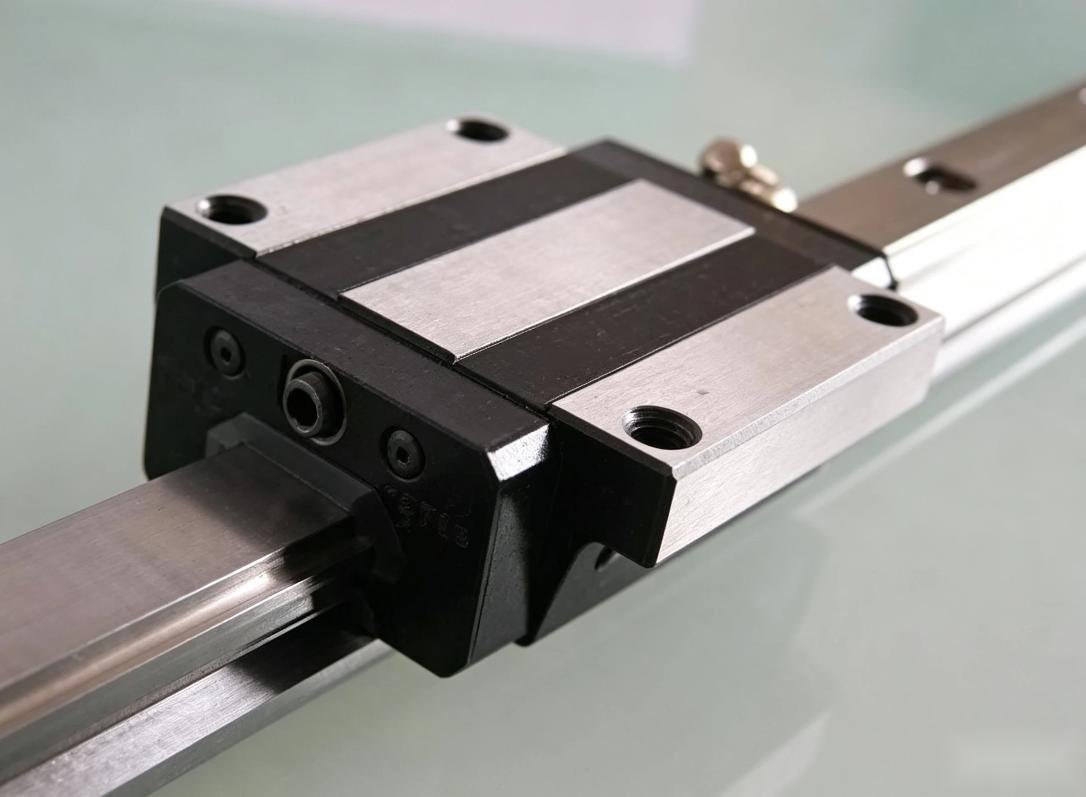

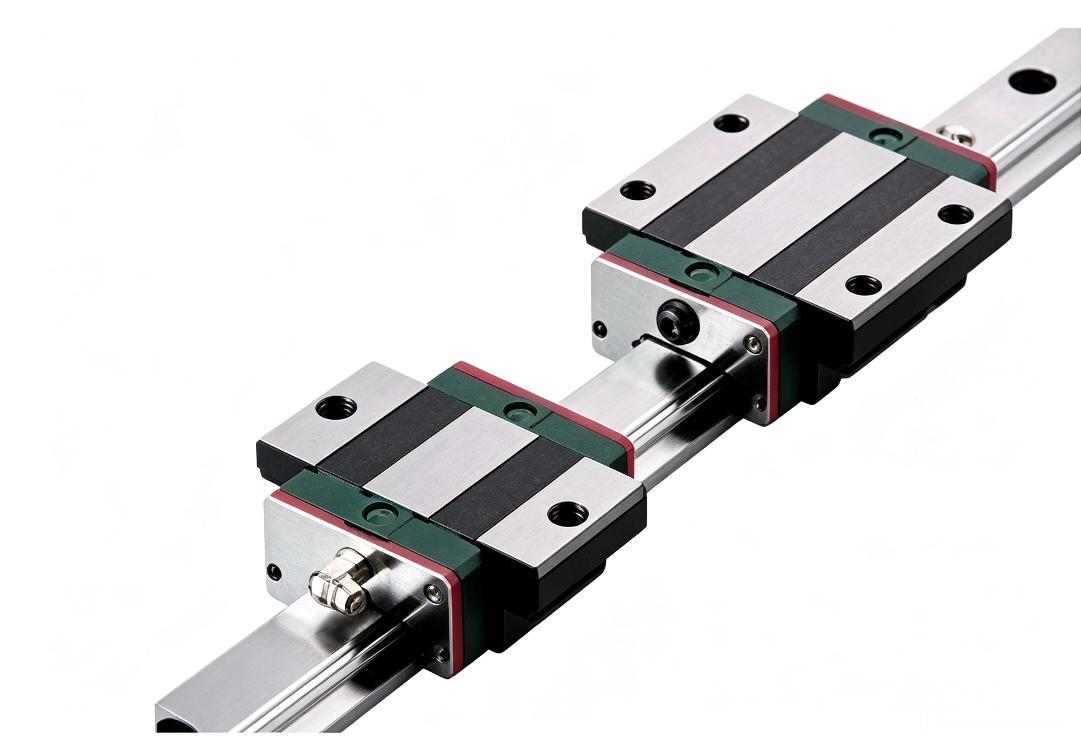

rectangular sliding guideway	Linear guideway

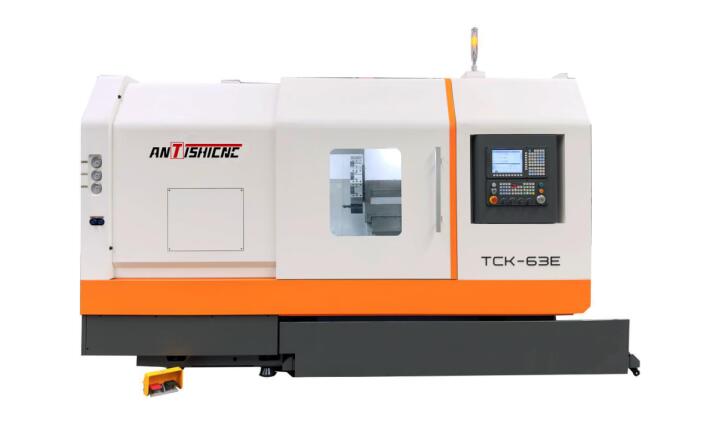

Based on the customer’s processing requirements, we recommend the following models.
