Performance Characteristics
Horizontal machining center has an inverted T structure with high spindle speed, high rigidity and large torque.
This series of machines has perfect performance, stable precision, It is suitable for processing various of box parts and 2D and 3D hook surfaces.
It is a key equipment for machining box parts in machinery, automobile, ship, textile machinery, printing machinery, agricultural machinery and other industries.
|
Model
|
unit
|

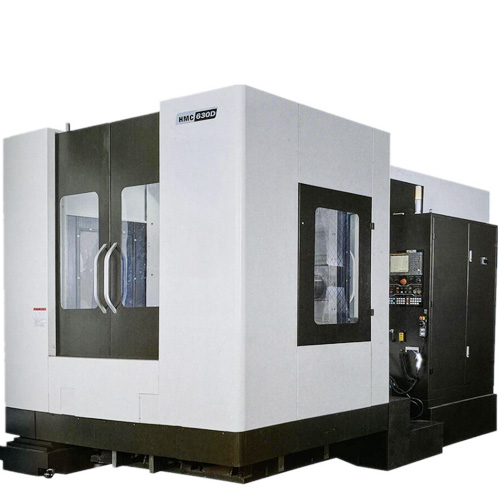

HMC630D (inverted T type)
|
|
Table travel (X.Y.Z)
|
mm
|
1000x800x800
|
|
Table size
|
mm
|
630×630
|
|
Max.load of worktable
|
kg
|
1200
|
|
Worktable indexing
|
|
1°x360°
|
|
Worktable positioning accuracy
|
arc-sec
|
10″
|
|
Worktable re-positioning accuracy
|
arc-sec
|
2″
|
|
Repid feed speed
|
m/min
|
24/24/24
|
|
Spindle speed
|
rpm
|
30-3000
|
|
Torque of spindle
|
N.m
|
660(gear)
|
|
Tool shank type
|
|
BT50
|
|
Main motor power
|
kw
|
15/18.5
|
|
Tool magazine capability
|
qty
|
24 (arm type)
|
|
Tool weight
|
kg
|
25
|
|
Positioning accuracy(X.Y.Z)
|
MM
|
±0.005/300 JIS
|
|
Repeat positioning accuracy (X.Y.Z)
|
MM
|
±0.003/300 JIS
|
|
Machine weight
|
kg
|
13000
|
