CNC bending machine is a common metal forming equipment. Through the CNC system, the bending angle and size are precisely controlled, and metal sheets can be bent into various shapes efficiently and accurately to meet the production needs of different products. CNC bending machines are widely used in manufacturing industries such as automobiles, home appliances, and construction.
Recently, the Shanghai ANTS team received an inquiry from a furniture manufacturer. The customer needs to produce cabinets and furniture of different sizes, with a maximum sheet thickness of 3mm and a length of 3000mm. According to the requirements, we recommended the WC67K-80T3200 CNC bending machine and equipped it with a large curved knife mold specifically for bending cabinets. Recently, the customer came to visit the factory and was very satisfied after watching the on-site proofing and processing.

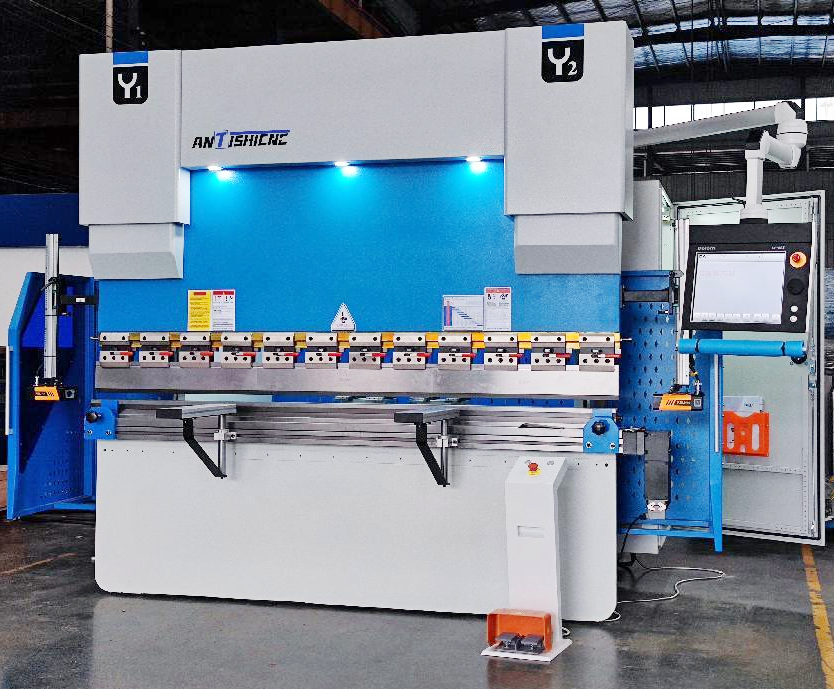

ANTISHI CNC press brake:
– Adopt all -steel welded structure, with sufficient strength and rigidity
-Hydraulic upper transmission, stable and reliable;
-Mechanical stop, torsion axis synchronization, high precision;
– The back gauge and the stroke of the slider are electrically adjusted ;Deflection compensation mechanism is optional to ensure higher bending accuracy;
-CNC system TP10S,DA41T,E300PCT8 Optional-Y-axis and X-axis double servo automatic control,high accuracy
| Item | WC67K-80T3200 | Unit | |
| Nominal Pressure | 800 | Kn | |
| Length of Table | 3200 | mm | |
| Distance between columns | 2560 | mm | |
| Throat Depth | 320 | mm | |
| Ram stroke | 100 | mm | |
| Max. Open height | 350 | mm | |
| Main motor | 7.5 | KW | |
| Accuracy | ±0.05 | mm | |
| Electric power supply | 380 V 50HZ 3PH/ customized | ||
| Overall Dimensions | L | 3200 | mm |
| W | 1500 | mm | |
| H | 2300 | mm | |
If you are also a furniture manufacturer, or have similar CNC bending machine processing needs, welcome to consult Shanghai ANTS. We have rich experience in bending machine manufacturing and application, and can provide you with professional technical support.
Key word: CNC press brake, Furniture industry, Sheet bending machine
