Frame hydraulic press machine is a widely used equipment in industrial production, which is widely used in pressing process and press molding process of metal, plastic, rubber, wood, powder and other products, such as forging, stamping, cold extrusion, straightening, bending, turning, plate drawing deepening, powder metallurgy and so on. It has a wide range of applications in the automotive, home appliance, kitchenware, hardware, aviation, electronics and other industries, especially in the field of automotive parts manufacturing has a significant application advantage for automotive parts manufacturers to provide efficient and accurate solutions, it can help manufacturers to improve production efficiency, reduce costs, while ensuring product quality and safety.
Frame hydraulic press machine plays a role in the manufacture of automobile parts:
1.Stretch molding process: in the manufacture of automotive parts, it is often necessary to stretch molding of sheet metal to meet the manufacturing needs of the body, chassis and other components. With its strong pressure and stable performance, the frame hydraulic press machine can complete this process efficiently to ensure the quality and performance of auto parts.
2.Bending and flanging process: Bending and flanging operations of sheet metal are often involved in automotive parts. Frame hydraulic press machine can ensure the accuracy and consistency of these process steps and improve production efficiency through precise control and stable operation.
3.Stamping processes: The manufacture of automotive forged and cold stamped parts requires the use of hydraulic press equipment and stamping dies. Frame hydraulic press machine can provide sufficient pressure and stability to meet the needs of these stamping processes, ensuring that the automotive parts produced meet design requirements and quality standards.

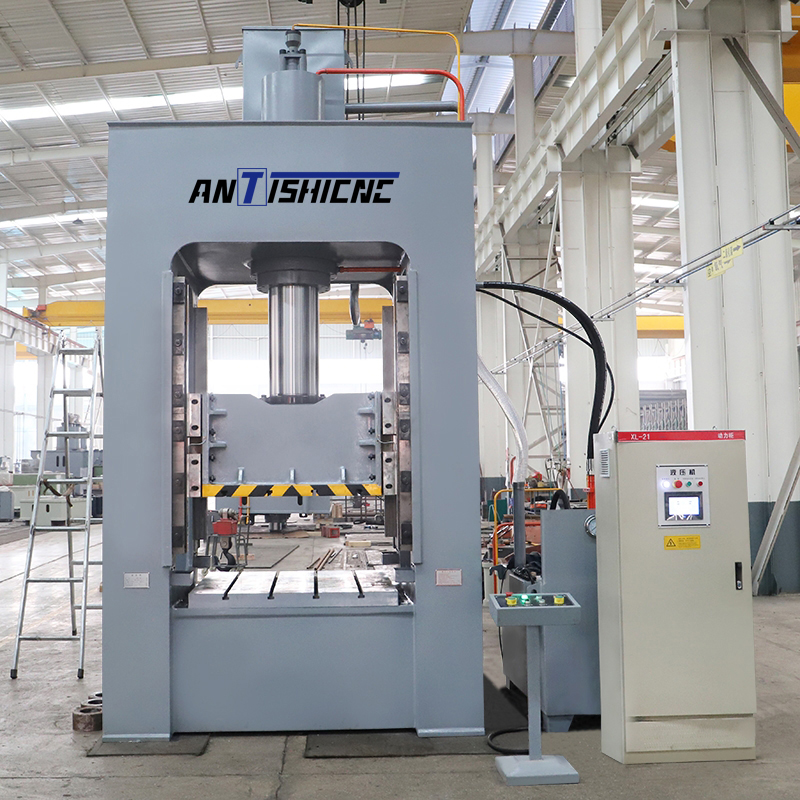

The frame type hydraulic press machine produced by Shanghai ANTS Machine Equipment Company adopts frame type structure, PLC controlled electrical system, high strength of the machine body and good economic applicability. The four corners and eight sides guide rail design makes the machine with good rigidity, high precision, strong resistance to partial load, high stability, and can meet the needs of complex processes. For example, the following 1250 Ton frame hydraulic press machine for automotive rear axle stamping.

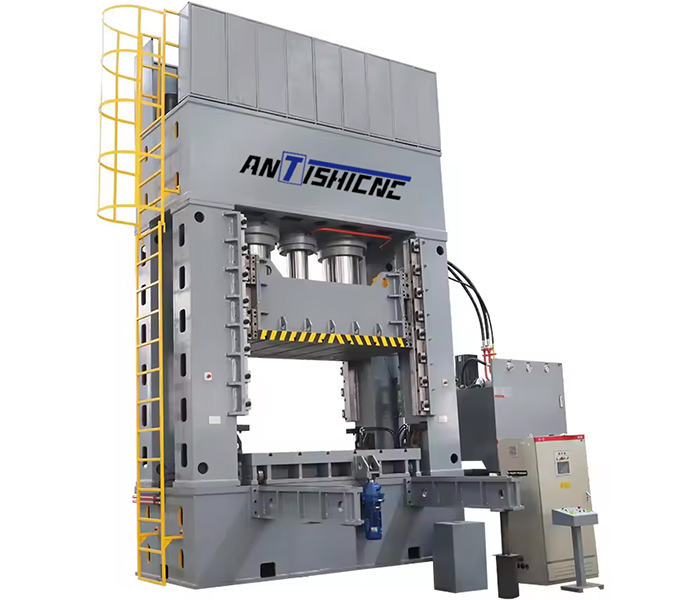

The 1250 Ton frame hydraulic press machine for automobile rear axle stamping and forming is equipped with PLC control system, servo motor, moving table, and the frame structure adopts all-steel welding: four corners and eight sides of right-angle guide rail, high precision, good rigidity, and hydraulic preload. The hydraulic system adopts two-way cartridge integrated valve; the whole system works stably and reliably, with long service life, less leakage and fewer failure points, which is widely used in forging, stretching, stamping, composite material molding, powder briquetting and other processes.
| Description | 1250 Ton frame hydraulic press machine |
| Nominal Pressure | 12500KN |
| System pressure | 25Mpa |
| Slide Stroke | 1200mm |
| Opening height | 1700mm |
| Table size | 2500*1600mm |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTS Machine.
If you have automobile parts processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machines and can provide you with professional technical support.
Key words: Hydraulic press machine, Frame hydraulic press machine, metal forming machine
