In modern manufacturing industry, the Electro-hydraulic Servo CNC Press Brake, as a key equipment for sheet metal processing, is promoting the development of the industry with its excellent performance. It is widely used in industries such as automotive manufacturing, aerospace, electronic equipment, architectural decoration, and hardware products, meeting the sheet metal processing needs of different fields.
Structural Features
Robust Body:Mostly adopt an integrally welded frame, which is optimized in design, has strong rigidity, and can withstand huge pressure.
Precise Guidance:High-precision guiding devices ensure the smooth linear movement of the slider, improving the processing accuracy.
Advanced Hydraulic System:Composed of pumps, electro-hydraulic servo valves, cylinders, etc., it realizes precise pressure and flow control.
Intelligent CNC System:Features a user-friendly human-machine interface, convenient programming operation, and can precisely control processing parameters.
Working Principle
The CNC system receives the input processing parameters and converts them into electrical signal instructions, which are transmitted to the electro-hydraulic servo valve. The electro-hydraulic servo valve adjusts the flow rate and flow direction of the hydraulic oil according to the signals, controls the action of the hydraulic cylinder, and drives the slider to complete the bending. At the same time, the displacement sensor continuously feeds back the position of the slider, forming a closed-loop control to ensure the bending accuracy.
Specific Advantages
| Advantage | Specific performance |
| High precision machining | Angular error can be controlled within ± 0.1 °, to ensure accurate bending angle; straightness and flatness far exceed the industry standard, reducing the deformation of the workpiece; excellent dimensional stability, the same batch of products with minimal dimensional error, high product consistency, and significantly reduce the rate of scrap! |
| Efficient production | Electro-hydraulic servo system response speed is extremely fast, the slider can quickly complete the up and down action, shorten the processing time of a single workpiece; fully automated operation, can be preset for a variety of complex processing procedures, one time to complete a number of bending operations; strong stability of the equipment, can be operated 24 hours a day uninterruptedly, and greatly improve the utilization rate of the equipment |
| Ease of operation | Equipped with intuitive graphical human-machine interface, the operator can complete the parameter settings through simple touch operation; programming using simple and easy to understand instructions, even a novice can quickly get started; in the processing process, you can adjust the parameters at any time according to the actual situation, without the need for complex downtime operations |
| Highly adaptable machining | Can process a variety of metal materials, including high-strength alloy steel, titanium alloys, copper alloys, etc.; support for V-bending, U-bending, Z-bending, curved bending and other complex processes; can be processed from ultra-thin plate thickness of 0.1mm to ultra-thick 80mm, to meet the needs of different industries |
| High safety performance | Equipped with multiple safety protection devices, such as light curtain sensors, safety grating, emergency brake buttons, etc., to protect the safety of operators in all aspects; with intelligent fault diagnostic system, real-time monitoring of the equipment operating status, once the abnormalities immediately alarm and shutdown, so as to facilitate the maintenance personnel to quickly locate and solve the problem. |
| Energy saving and environmental protection | Adopt advanced energy-saving technology, such as variable pump control, energy recovery device, etc., compared with the traditional bending machine energy saving of more than 40%; operating process noise is extremely low, reducing the noise pollution of the working environment. |
| Convenient maintenance | Modular design, easy to disassemble and replace components; equipment built-in intelligent maintenance system, can predict the wear and tear of components in advance, so as to facilitate the preparation of spare parts in advance, reducing maintenance costs and downtime |
| Data management and traceability | The CNC system has a powerful data management function, which can record the parameters and process of each machining to facilitate product quality traceability; support for data export, which is convenient for enterprises to analyze the production data and management decision-making. |

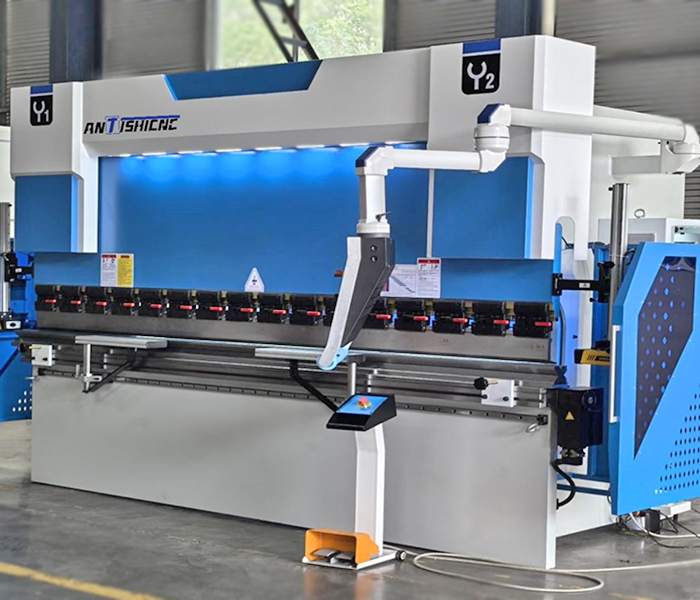

Shanghai ANTISHICNC Electro-hydraulic Servo CNC Press Brake WC67K-800T/6000 4+1 axis (Y1, Y2, X, R + compensation)
Features of WC67K-800T/6000
Precision Transmission Components: Adopting HIWIN ball screws and linear guides, the precision can reach 0.01mm, ensuring the equipment runs stably and accurately during operation. It greatly improves the processing precision, allowing the dimensional error of the products to be controlled within a very small range.
Remarkable Performance Advantages: It has the characteristics of high precision, high speed and accurate positioning. The high precision ensures that the processed workpieces meet strict quality standards; the fast running speed effectively shortens the processing cycle and improves production efficiency; the accurate positioning function guarantees that each bending is accurate, reducing the reject rate.
Precise Feeding System: The back gauge device equipped with an AC servo motor and driver can achieve precise feeding control. Under different processing requirements, it can quickly and accurately send the sheet metal to the designated position, further improving the processing precision and efficiency.
Technical Parameters of WC67K-800T/6000
| No. | Item | Parameter | Unit | |
| 1 | Nominal Pressure | 8000 | Kn | |
| 2 | Length of Table | 6000 | mm | |
| 3 | Slider Stroke | 320 | mm | |
| 4 | Distance between columns | 4600 | mm | |
| 5 | Throat Depth | 500 | mm | |
| 6 | Table height | 900 | mm | |
| 7 | Max. Open height | 800 | mm | |
| 8 | Back gauge X Axis | Range | 0-600 | mm |
| Max Run Speed | 360 | mm/s | ||
| Position Precision | ±0.025 | mm | ||
| Repeatability Position Precision | ±0.015 | mm | ||
| 9 | Slider running speed | Range | 200 | mm |
| Position Precision | ±0.02 | mm | ||
| Repeatability | ±0.01 | mm | ||
| 10 | Y Axis | Repeatability | ±0.01 | mm |
| 11 | Main motor | 60 | KW | |
| 12 | Electric power supply | 400V 50HZ 3PH， customized | ||
| 13 | Number of axis | 4+1 axis （Y1 , Y2 ,X, R +compensation） | ||
| 14 | Overall Dimensions | L | 6800 | mm |
| W | 3000 | mm | ||
| H | 3800 | mm | ||
| 15 | Weight | 55 | T | |
The WC67K – 800T/6000 Electro-hydraulic Servo CNC Press Brake, with its outstanding performance and precise processing capabilities, is sure to become a reliable assistant for your sheet metal processing, helping enterprises enhance production efficiency and product quality.
If you are in need of a press brake for high-precision processing, you are welcome to consult Shanghai ANTISHICNC. We have rich experience in the manufacturing and application of CNC press brakes and can provide you with professional technical support.
