Universal lathe is one of the most common metal cutting machine tools, which is mainly used to process various rotating parts. It realizes cutting through the rotational motion of the workpiece and the linear motion of the tool.
Main application areas:
1.Mechanical processing manufacturing industry:used to process key parts such as crankshafts, camshafts, pistons, connecting rods, etc. of automobile engines; it can also process large parts such as propeller shafts, rudder shafts, various transmission shafts, etc. of ships.

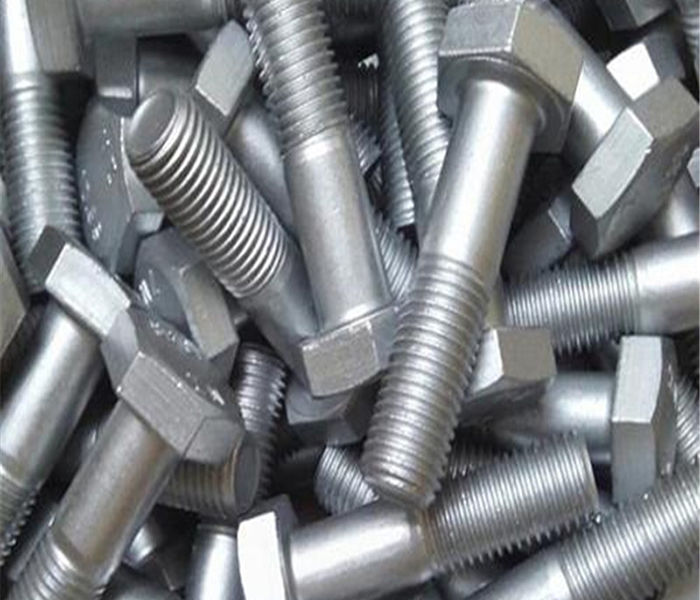

2.Hardware processing industry: it can process standard parts such as screws, nuts, bolts, etc. Ordinary lathes can process the external and internal threads of standard parts through turning technology, as well as perform external processing on the head and rod.
Recently, Shanghai ANTS machine received an inquiry from a customer in Zimbabwe. They needed a general lathe with a maximum rotation diameter of 610mm, a maximum swing of 370mm on the slide, a maximum rotation diameter of 830mm on the saddle, a maximum workpiece processing length of 2M, and a bed width of 400mm. Through the customer’s email and other information, we recommended our general lathe CS6266B to the customer.

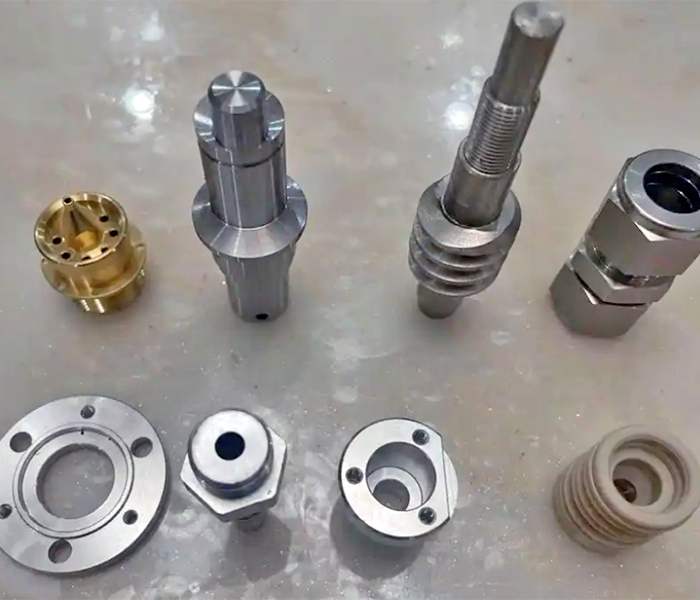

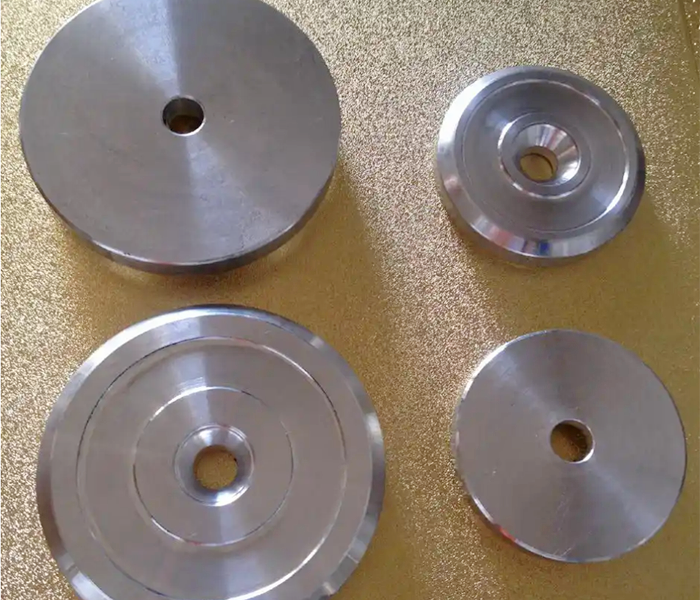

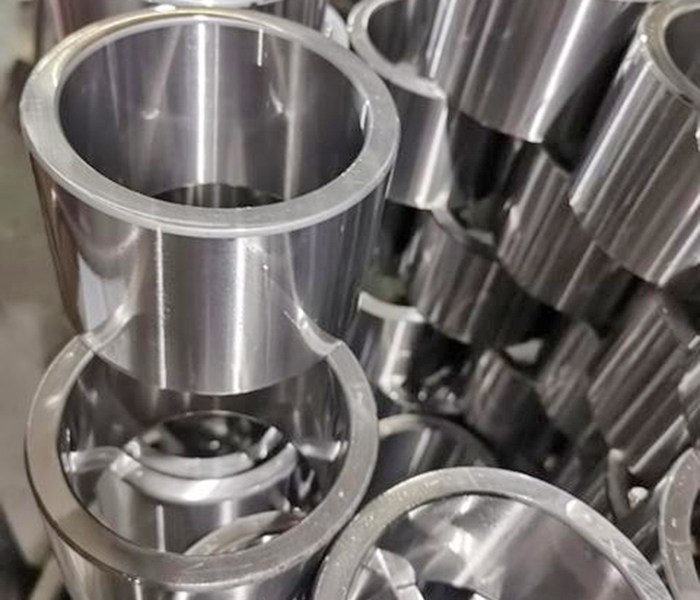

Processing workpiece display:
 |
 |
 |
 |

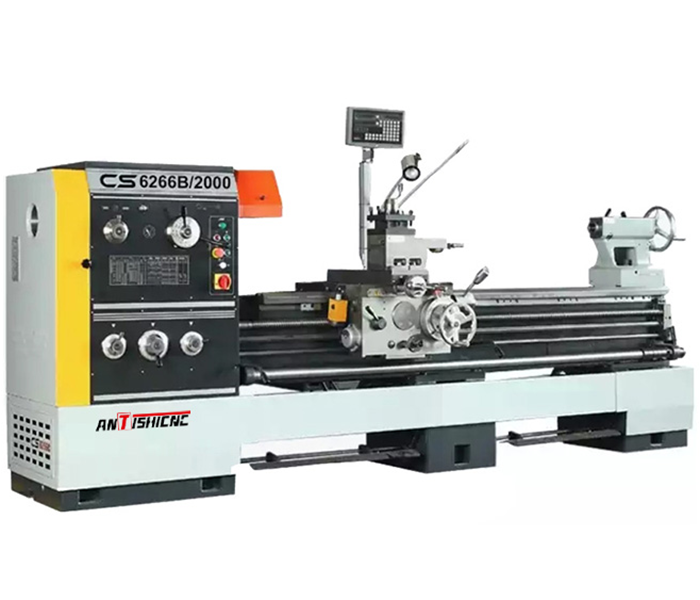

The CS6266 series general lathe manufactured by ANTISHICNC is a cost-effective general lathe with diverse processing functions, multiple spindle through-hole specifications, flexible feed system and high processing accuracy. The machine has the characteristics of simple structure, flexible operation, wide processing range and diverse movement modes.
The main advantages of the machine are:
1.Strong processing adaptability for single-piece, small-batch production and processing of complex-shaped parts
2,Low cost: The purchase cost of ordinary lathes is much lower than that of advanced processing equipment such as CNC lathes, and its maintenance and maintenance are relatively simple.
3.Good processability: Processing parts on ordinary lathes can make full use of the operator’s skills and experience, and can achieve some special processing technology and surface quality requirements by manually controlling the movement of the tool.
Main parameters of the machine :
| Specifications | Unit | CS6266B | |
| Capacity | Max swing over bed | mm | Φ660 |
| Max swing in gap | mm | Φ870 | |
| Effective length in gap | mm | 240 | |
| Max swing over slide | mm | Φ420 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Spindle | Spindle Aperture Diameter | mm | Φ82 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | ||
| Spindle speed | r/min | 24 step 9-1600 | |
| Spindle motor | kW | 7.5 | |
| Tailstock | Quill dia./travel | mm | φ75/150 |
| Taper of center | MT | 5 | |
| Tool post | Number of station/Tool section | 4/25X25 | |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 320 | |
| X-axis feed | mm/r | 93 sorts 0.028-6.43 | |
| Z-axis feed Z-axis feed | mm/r | 93 sorts 0.012-2.73 | |
| Metric thread | mm | 48 sorts 0.5-224 | |
| Inch thread | t.p.i | 48 sorts 72-1/4 | |
| Module thread | πmm | 42 sorts 0.5-112 | |
| DP thread | t.p.i. π | 42 sorts 56-1/4 | |
| Others | Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632/3132/3632/4632 | |
| Machine width | mm | 1050 | |
| Machine height | mm | 1350 | |
| Machine weight | kg | 2400/2600/2800/3000 | |
If you have similar needs, please contact Shanghai ANTS machine:We not only have ordinary horizontal lathes, ordinary lathes, heavy-duty lathes, CNC lathes, CNC flat bed lathes, CNC inclined bed lathes, but also CNC vertical lathes. Our technical team will definitely be able to match you with the most suitable technical solution.
