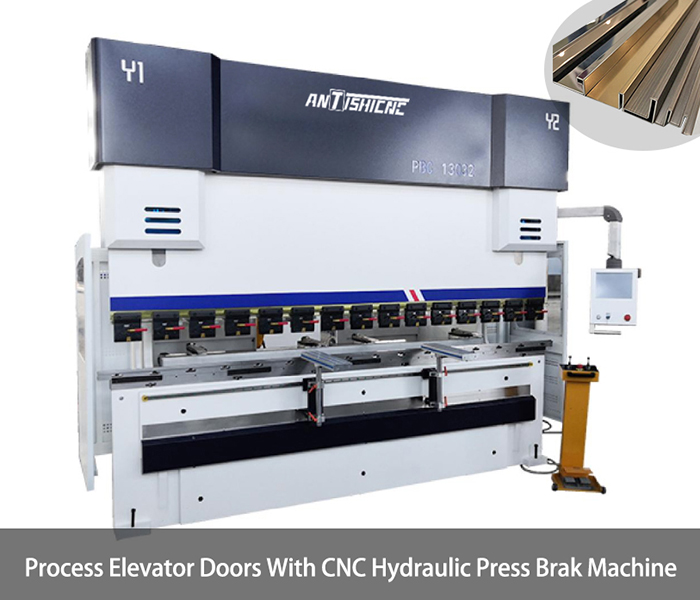

Shanghai ANTISHICNC Company’s CNC Press Brake Machine has standardized and modular supporting devices for processing elevator doors, which can expand the processing of customers’ elevator production lines. We design production lines and automated equipment for you according to standards, emphasizing high quality, flexibility and productivity. There are mainly the following steps to process elevator doors with a Press Brake Machine:
1.Selection of molds for CNCPress Brake Machines
According to the shape and size of the elevator door, select matching bending molds, such as V-shaped molds, U-shaped molds, etc., and install them correctly on the press brake machine. If a high degree of flexibility is required, we can add robots or manipulators to our CNC Press Brake Machines. Manipulators, such as fixtures and center products, can rotate 360 degrees, which is suitable for grabbing elevator sheet metal with a relatively large weight, which is conducive to saving labor costs and realizing automated bending production.
2.Processing of CNCPress Brake Machines
Positioning the plate: Place the prepared elevator door plate on the CNC press braker machine workbench, and align the edge of the plate with the reference line of the press braker machine through the positioning device or manual adjustment to ensure accurate bending position.
Perform bending: Start the press braker machine, the pressure plate will drop according to the set parameters, press the sheet on the mold, and then the bending beam will start to move, so that the sheet will bend around the mold. During the bending process, pay attention to the bending situation to ensure that the bending angle and size meet the requirements.
Multiple bending: For elevator doors with complex shapes, multiple bending operations may be required. After each bending, the sheet position needs to be readjusted, and each bending part is completed in sequence according to the set program.
In addition, automatic loading and unloading equipment and intelligent material storage can also be installed on the feeding side or the discharging side of the machine. The bending speed of the CNC press braker machine is only 0.2 seconds per knife. The equipment can automatically bend up and down according to the bending process to achieve arc, dead edge, and various angles of combined bending, saving a lot of labor and mold costs for the enterprise.

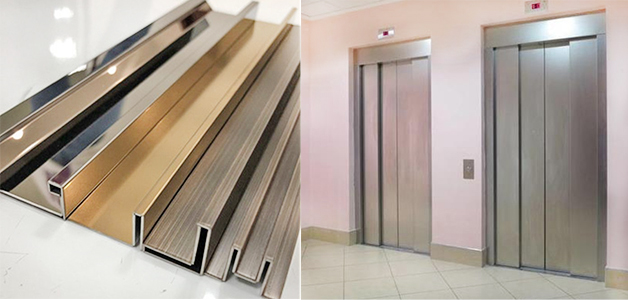

Elevator doors and elevator door cover sheet metal usually use stainless steel materials, with sheet sizes of 1400x1400mm/2000mmx1500mm and sheet thickness of 0.5-2 mm. Here Shanghai ANTISHICNC engineers recommend the above CNC press brake machines for computer cases. The models are as follows:

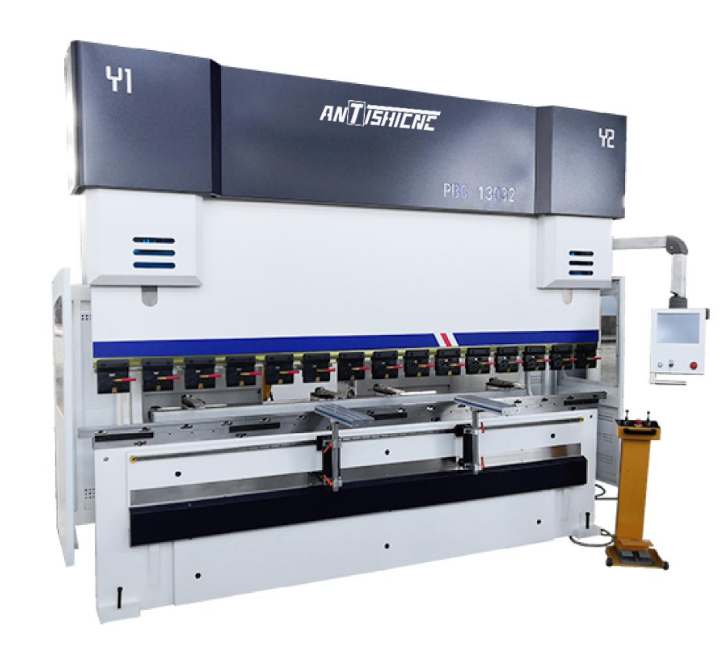

| Specifications | WC67K-300T 3200 |
| Nominal force | 3000 KN |
| Table length | 3200 mm |
| Distance between columns | 2600 mm |
| Throat Depth | 400 mm |
| Slider stroke | 250 mm |
| Max. opening height | 450 mm |
| Gear pump | NB2-40GF |
| Working pressure | 31.5 MPa |
| Max. position of backgauge | 800 mm |
| Main motor model | Y160M-6B5 |
| Main motor power | 18.5 KW |
 |
|
Welcome to your consultation!
