Servo hydraulic press machine, as an efficient and precise new generation of industrial equipment, is gradually occupying an important position in the manufacturing industry. It combines the advantages of advanced servo control technology and hydraulic transmission technology to realize the control of precise position, speed and force of working parts. Compared with the traditional hydraulic press machine, servo hydraulic press machine has the characteristics of high efficiency, precision, automation, etc. It is widely used in metal molding, plastic molding, press fitting, straightening, stretching, bending, stamping and other fields. So what are the structure and advantages of servo hydraulic press machine?
The composition structure of servo hydraulic press machine machine:
1.Servo motor: servo motor is the power source of servo hydraulic machine, through the control of motor speed and torque, to realize the precise control of hydraulic pump.
2.Hydraulic pump: Hydraulic pump is a device that converts the mechanical energy of the motor into hydraulic energy. By controlling the flow and pressure of the hydraulic pump, it realizes the pressure and speed control of the hydraulic system.
3.Hydraulic cylinder: hydraulic cylinder is a device that converts hydraulic energy into mechanical energy, by controlling the stroke and speed of the hydraulic cylinder, it realizes the precise control of the working table.
4.control system: the control system is the brain of the servo hydraulic machine, through receiving the operator’s instructions and sensor feedback signals, to achieve precise control of the servo motor, hydraulic pump and hydraulic cylinder.
5.Sensors: Sensors are the sensing organs of the control system, providing real-time feedback information for the control system by detecting the pressure, flow, speed and other parameters of the hydraulic system.
6.Actuator: The actuator is the device that realizes the motion of the table, including the guide rail, slider, table and so on.
Advantages of servo hydraulic press machine:
1.High-precision control: servo hydraulic press machineadopts servo control technology, which can realize high-precision control of the position, speed, pressure and other parameters of the hydraulic system to ensure the precision and stability of workpiece processing.
2.High efficiency and energy saving: the product adopts energy-saving design and control technology, which can adjust the operation status of the hydraulic system in real time according to the workpiece processing needs, reduce energy consumption and improve production efficiency.
3.Multi-functionality: the products have strong adaptability and multi-functionality, can be configured according to different processing needs of different workstations, molds and control systems to achieve a variety of technology processing.
4.Easy operation: the product adopts human-machine interface friendly operating system, easy and convenient to operate, can real-time monitoring of workpiece processing status and hydraulic system operation.
5.Safe and reliable: the product has a safety protection device and automatic fault diagnosis system, which can timely detect and deal with abnormalities in the operation of the equipment to protect the safety of operators and equipment.
Shanghai ANTS Machine Equipment Co., Ltd. is a professional manufacturer of hydraulic press machinees with advanced production technology and rich experience. Its products are characterized by high precision, high efficiency and high stability, and are widely used in automotive, aerospace, marine, energy and other fields. This manufacturer focuses on product innovation and research and development, and constantly introduces new technologies and products to provide users with perfect solutions. For example, the following 1000T servo hydraulic press machine is well received by customers.

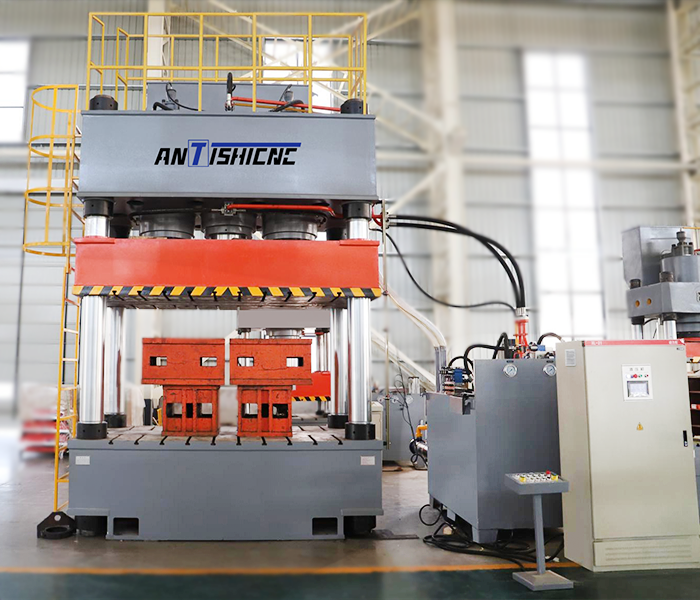

This 1000 tons hydraulic press machine is equipped with PLC and servo system, the machine body adopts three-beam and four-column structure, and the hydraulic control adopts cartridge valve integrated system, which has reliable action and long service life. Independent electrical control system, intuitive action, easy maintenance. Through the operation panel selection, it can realize two kinds of forming process, fixed range and fixed pressure, and has the function of holding pressure delay and so on. The machine is equipped with emergency stop button, limit switch, safety protection device, safe and reliable.
| Description | YQ32-1000T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 1200 |
| Maximum opening height (mm) | 2300 |
| Table size (mm) | 2000*1800 |
| Down speed of empty range (mm/s) | 100 |
| Working speed (mm/s) | 12 |
| Return speed (mm/s) | 80 |
| Servo Motor power (KW) | 90 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have the servo hydraulic press machine machine needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machine machines and can provide you with professional technical support.
