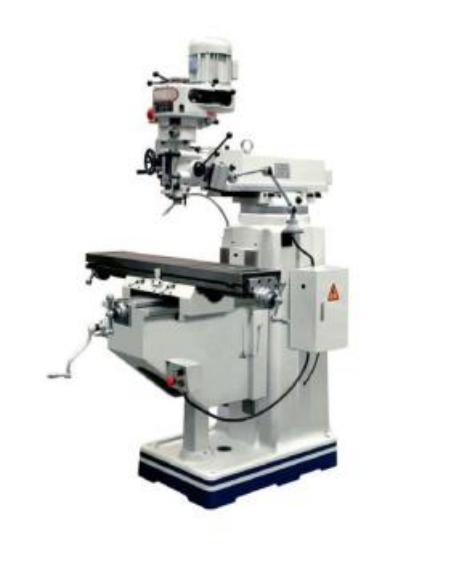

Model: X6333A
Brand: ANTISHICNC, Origin: China
TECHNICAL SPECIFICATION
| Table: | |
| Working surface of table: | W: 330, L: 1500 mm |
| Longitudinal travel: | 950mm |
| Cross travel: | 360mm |
| Vertical travel: | 460mm |
| Longitudinal feeds: | Min: Max 23, Max: Minm 625 mm/min (Min. 11 steps) |
| Rapid longitudinal traverse: | 4P: 2850~2900 mm/min 8P: 1400~1450 mm/min |
| Rapid vertical traverse: | 675~700 mm/min |
| Vertical Main Spindle: | |
| Spindle speeds: | Standard: shift grade 50HZ:66-4540rpm 60HZ:80- 5440rpm |
| Quill travel/Quill Dia | 127mm/100mm |
| Taper of spindle nose | ISO40 |
| Swiveling angle of spindle head (R & L) each side | 90° |
| Overarm travel | 500mm |
| Distance of spindle end to table top | 450 mm |
| Motor: | |
| Vertical spindle | 3.75KW/5HP |
| Table longitudinal feed | 2HP (4P/8P) |
| Table cross travel feed | 1/2HP (4P) |
| Table Vertical rapid traverse | 1HP (8P) |
| Coolant pump | 1/8 HP |
Features and Construction:
Major structural parts shall be manufactured from high quality Meehanite cast iron, assuring maximum rigidity and stability.
3-axes slideways shall be hardened and precision ground.
Table longitudinal travel shall be driven through powerful gearbox, making the machine ideal for heavy duty machining
Automatic lubricator shall provide lubrication to all slideways and feed screws
Powered table elevation
X, Y-axis slideways must be coated with wear-resistant media and precision scraped
Ball screw shall be installed on X, Y-axes
Variable speed milling head
Y-axes movement is controlled through inverter
