Points needing attention in the operation process of CNC surface grinding machine

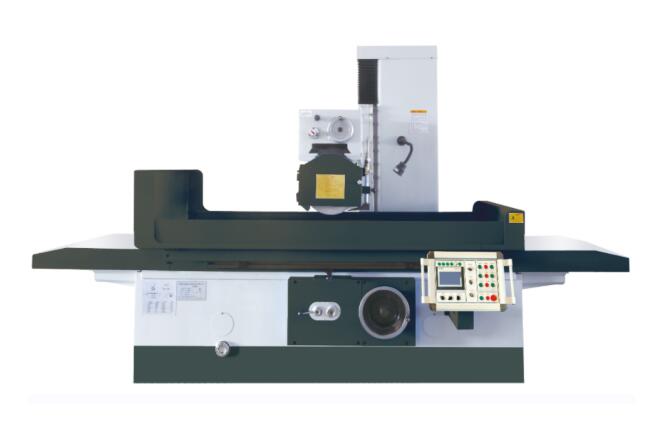

The surface grinder mainly uses the grinding wheel to grind the work piece and use the required flatness. According to the shape of the workbench, it can be divided into two types: rectangular workbench and circular workbench.The main parameters of the rectangular table surface grinder are the working width and length, and the main parameters of the round table surface grinder are the diameter of the work piece table, what should be paid attention to in the specific operation of the surface grinder? Shanghai ANTS will explain to you:

1.The positioning rules of the surface grinder
Where should the grinder be placed and how should it be installed?
Should be in a relatively large exercise space, reserve more than 300mm, each foot screw is tightened, and the front, rear and left and right levels of the table are within 0.04/100mm(If the frequency conversion is installed, the requirements are higher)

2.The selected grinding wheel must be able to withstand a rotation speed of more than 2000m/min, because if the speed is too low, it will easily leave traces, but if the speed is too high, the price of the grinding wheel will be much higher, and special attention should be paid to the fact that It is strictly forbidden to use the damaged grinding wheel. If conditions permit, it is recommended to do a test after the new grinding wheel is installed.

3.Spindle of surface grinder
Before installing the grinding wheel, make sure that the spindle rotates clockwise.

4.Hydraulic device of surface grinder
The surface grinder uses hydraulic oil with a viscosity of No. 46.
The new machine needs to replace the hydraulic oil after three months of use, and then once a year, and the oil tank must be cleaned at the same time.

5.Surface grinder lubrication device
The lubricating oil uses the guide oil with the viscosity of No. 32
Check the fuel level of the fuel tank every day to ensure that it is above the scale line
Check every week whether the oil path of the guide rail is unobstructed and whether the guide rail has lost oil
It is recommended to clean the fuel tank every three months
