Since machining centers are generally developed on the basis of milling machines, they can be called gantry milling machine machining centers, and are usually referred to as gantry machining centers. Gantry machining centers are one of the most productive and widely used CNC machine tools in the world. Their main features are:
(1) Gantry machining centers add an internal tool changer on the basis of CNC boring machines or CNC energy machines, so that after the workpiece is clamped once, multiple processes can be continuously completed on the workpiece surface, and the processes are highly concentrated.
(2) Gantry machining centers are generally equipped with an automatic indexing rotary table or spindle box, which can automatically rotate the angle, so that after the workpiece is clamped once, multiple processes can be automatically completed on multiple planes or multiple angles.
(3) The machining center can automatically change the machine tool spindle speed, feed rate, tool movement trajectory relative to the workpiece, and other auxiliary functions.
(4) If the machining center is equipped with an exchange table, while the workpiece is being processed on the worktable at the working position, another workpiece is being loaded and unloaded on the worktable at the loading and unloading position without affecting the normal processing of the workpiece.

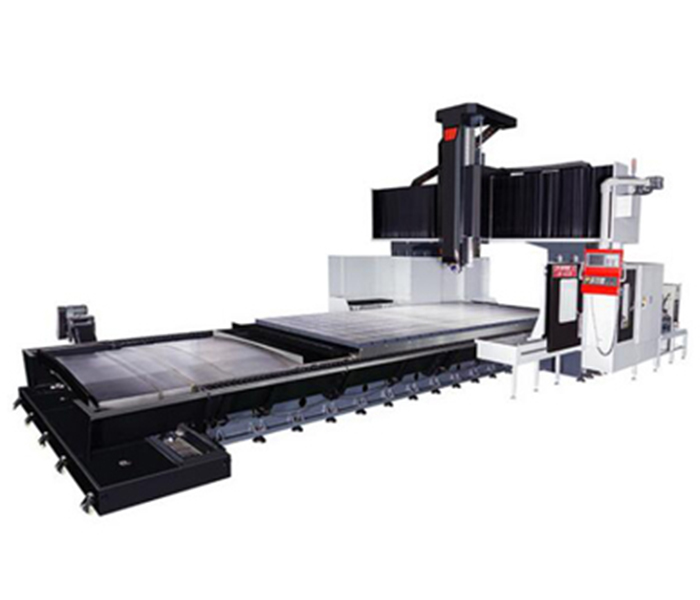

ANTISHI LMX-4228 CNC Gantry Machining Centre
Technical Parameter :
| ITEM | Description | Unit | Technical data | |
| Workbench | Dimensions (length X width ) | mm | 4000 x 2000 | |
| T-slot (size×quantity×spacing) | mm | 22×10×180 | ||
| Weight capacity | Ton | 18 | ||
| Gantry | Distance between two columns | mm | 2800 | |
| Distance from spindle end to worktable | mm | 300～1300 | ||
| Travel | X axis | mm | 4200 | |
| Y axis | mm | 2800+550（Milling head stroke） | ||
| Z axis | mm | 1000 | ||
| Fast Speed | X axis | mm/min | 10000 | |
| Y/Z axis | 12000 | |||
| Feed Speed | X/Y axis | mm/min | 5～8000 | |
| Z axis | 5～8000 | |||
| Spindle | Spindle rated power | Kw | 17/23 | |
| Spindle torque | Nm | 56.4/67.9 | ||
| Spindle speed | rpm | 20000 | ||
| Spindle taper | HSK-A63 | |||
| Ram cross section | mm | 480×410（Second track） | ||
| Precision | positioning accuracy | X | mm | 0.035（full length） |
| Y | mm | 0.025（full length） | ||
| Z | mm | 0.015（full length） | ||
| Repeatability | X/Y/Z | mm | 0.023/0.020/0.015 | |
| Machine tool inspection accuracy standards | GB/T 19362.1—2003 | |||
| Others | Total capacity of machine tool power | KVA | 60 | |
| Air pressure | bar | 6.5 | ||
| Machine weight (approximately) | T | 45 | ||
| Machine size (length X width X height) | mm | 11000*6400*5500 | ||
Shanghai ANTISHICNC can provide timely technical support, training and spare parts supply.We only produce high-quality gantry machining centers!
