In the modern home furnishing industry, metal materials are used more and more widely, from furniture frames to decorative details, metal elements are everywhere. As an efficient and precise cutting tool, metal band saws are playing an increasingly important role in the field of home furnishing manufacturing. The following is a specific application case of our customers, showing how metal band saws can help the home furnishing industry achieve a perfect combination of efficient production and aesthetic design.
 |
 |
 |
 |
 |
 |
Case Background
“VUDI” LLC is a furniture company in Azerbaijan that has achieved great success in the furniture field. The furniture manufacturing company focuses on the production of high-end custom furniture, and its products are known for their unique design and exquisite craftsmanship. With the continuous growth of market demand, the company decided to introduce advanced metal band saws to improve production efficiency and product quality.
Shanghai ANTISHICNC Machine received an inquiry from the company. The customer needs to cut aluminum, iron and stainless steel. The maximum pipe diameter is 400mm, and it is required to be able to turn at 45°/60°/90°. According to its requirements, we recommended the following two machines with the following parameters:

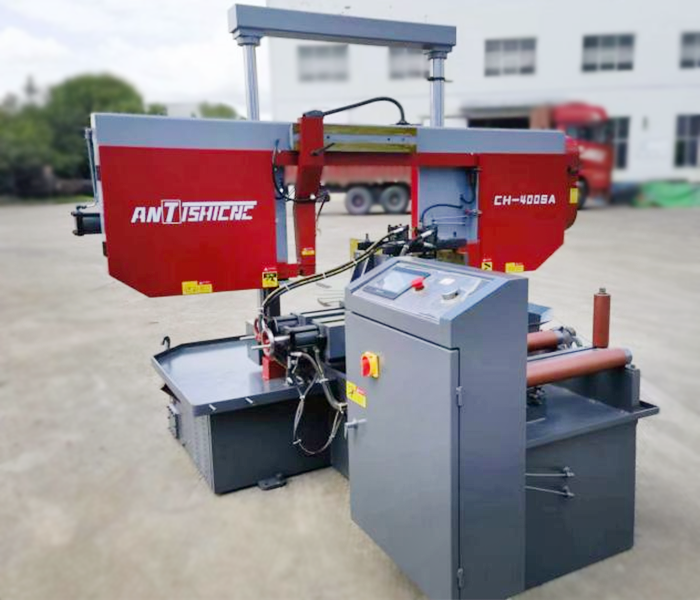

| Technical SPECIFICATION | Model | CH-400SA | |
| 90° Circular cutting capacity | 400mm | |
| 90° Rectangular cutting capacity | 400*400mm | |
| 60° Circular cutting capacity | N/A | |
| 60° Rectangular cutting capacity | N/A | |
| 45° Circular cutting capacity | 350mm | |
| 45° Rectangular cutting size | 350*400mm | |
| Blade Speed m/min | 20~80(inverter) | |
| Blade size(mm) | 41×1.3×5590 | |
| Saw blade tension type | Hydraulic | |
| Main motor power | 4kw | |
| Feeding method | Hydraulic | |
| Angle rotate driving type | Hydraulic/Encoder | |
| Machine weight | kg | 2700kg |
| Overall dimension | mm | 2915x2180x2100 |

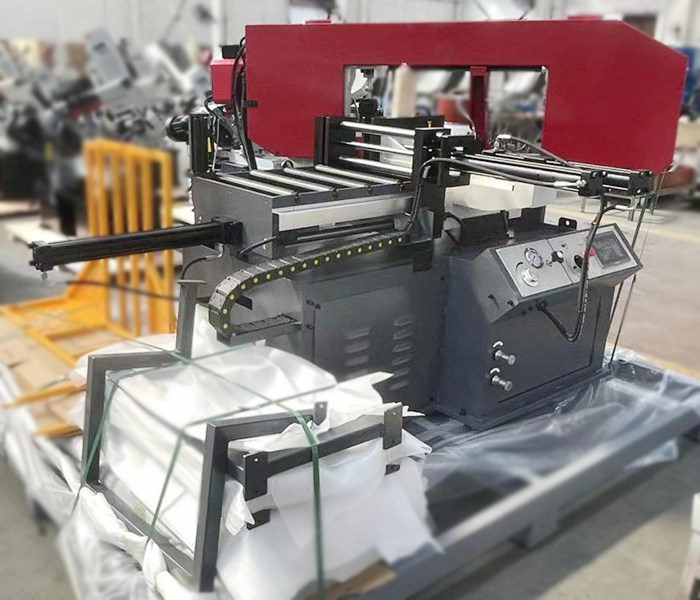

| Model | BS-460G | |
| Capacity
|
Circular @90° Round steel | 330mm(13”) |
| Rectangular @90° Square steel | 460x250mm(18”x9.8”) | |
| Circular @60°(Right) Round steel | 205mm(8”) | |
| Rectangular @60°(Right) Square steel | 205x250mm(8”x9.8”) | |
| Circular @45°(Left&Right) Round steel | 305mm(12”) | |
| Rectangular @45°(Left&Right) Square steel | 305x250mm(12’x9.8”) | |
| Blade speed | @50Hz | 40/80MPM |
| @60Hz | 48/96MPM | |
| Blade size | 27X0.9X3960mm | |
| Motor | 1.5/2.2kw | |
| Drive | Gear | |
| Packing size | 231x107x163cm | |
| N.W/G.W. | 900/1060kg | |
|
 |
| CH-400SA | BS-460G |
Application process
1.Material preparation and cutting: The company selected a new generation of high-precision metal band saws for cutting a variety of metal materials, including aluminum alloys, stainless steel and iron. The efficient cutting capacity of the band saw makes the material preparation process faster, with a cutting speed of 80 meters per minute, greatly shortening the production cycle.
2.Precision processing and assembly: Through the CNC system, the metal band saw can achieve high-precision cutting with an error control within ±0.02 mm. Precise cutting not only ensures the size and shape of metal parts, but also facilitates subsequent assembly, making the overall structure of the furniture more stable and beautiful.
3.Creative design and customization: The flexibility of the metal band saw enables the company to customize according to customer needs. Whether it is a complex angle curve design or a unique geometric pattern, the band saw can easily cope with it, meeting customers’ dual requirements for aesthetics and functionality.
If you are also in the home manufacturing industry, you need a suitable band saw.
Welcome to consult Shanghai ANTISHICNC Team. We are a senior supplier of band saws, with rich experience in manufacturing and utilizing machinery and equipment, and can provide you with professional technical support.
