According to the product process, servo hydraulic press machine can be divided into servo four-column hydraulic press machine, servo frame hydraulic press machine, servo gantry hydraulic press machine and servo single arm hydraulic press machine. Among them, the servo four-column hydraulic press machine has wide applicability, which can not only be used in the manufacture of automobile parts, such as body pressing, parts processing, etc., but also can be applied to the production of composite materials and powder products. For example, it can be used for molding of composite materials as well as press molding in powder metallurgy, ceramic powder and other industries.

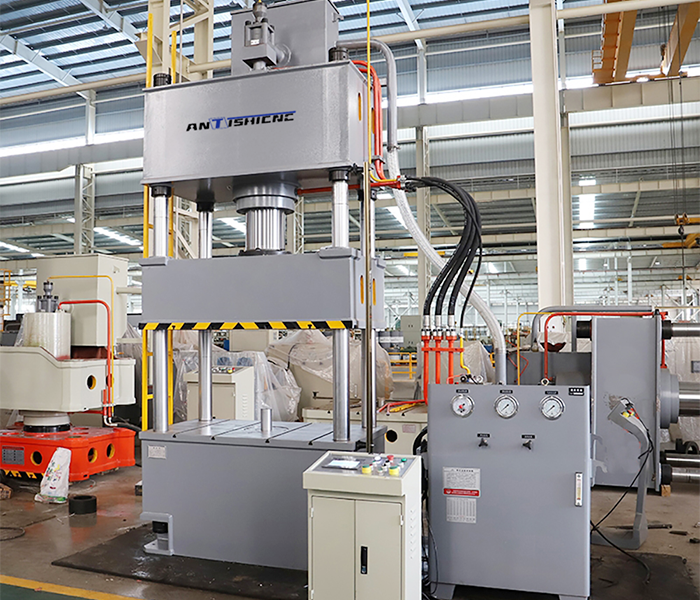

Recently, Shanghai ANTS team received an inquiry from a manufacturer of thermal expansion graphite seals. The customer’s product is made of graphite flaps cut from graphite sheets and requires a machine with a working pressure of 400 tons and with a bottom ejector cylinder for ejecting the finished product from the mold. Based on the customer’s requirements, we recommended a 400 Ton servo three-beam and four-column hydraulic press machine to the customer.
The servo three-beam and four-column hydraulic press machine produced by Shanghai ANTS Machine are equipped with servo motors, PLC and cable scales, which make the control more accurate and meet the requirements of sectional speed control. Hydraulic control adopts to insert set valve integrated system, decrease let out Point. Movement reliability, durable and long life span, it is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time. The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, can realization manual, semi-automatic, automatic 3 operate form. The customer is very satisfied with our proposal.
| Description | 400T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 600 |
| Maximum opening height (mm) | 800 |
| Table size (mm) | 800*800 |
| Down speed of empty range (mm / s) | 160 |
| Working speed (mm / s) | 6/12 |
| Return speed (mm / s) | 85 |
| Motor power (kw) | 22 |
| Jacking force (t) | 63 |
| Ejection stroke (mm) | 200 |
If you have powder molding processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machines and can provide you with professional technical support.
More products please visit: hydraulic-press-machine
Key words: Hydraulic press machine, servo hydraulic press machine, powder molding, four-column hydraulic press machine
