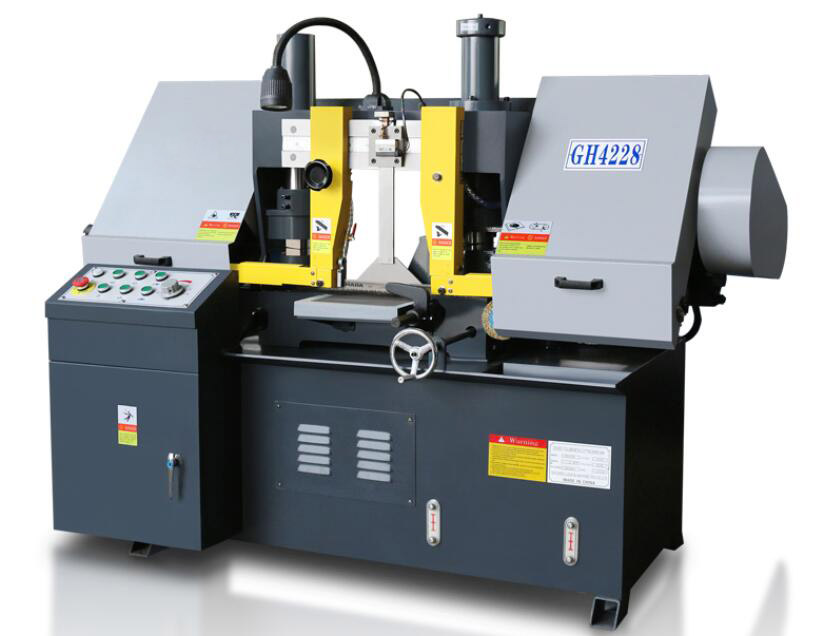

Proven design with dual-column guides ensure maximum accuracy and stability for cost
-effective machining of large parts.
Feed of the saw frame is infinitely variable via a hydraulic throttle valve
At the end of saw cycle ,the saw blade will stop and return to the home position
Very rigid ,adjustable saw blade guides keep the saw blade on track
Including hydraulic workpiece clamping with clamping pressure control
Standard equipment :hydraulic workpiece clamping ,1 saw blade belt ,material support stand ,coolant system ,work lamp ,operation
manual
Optional equipment :automatic blade breakage control ,fast drop protection devise ,hydraulic blade tension ,automatic chip removal
device ,various blade linear speed ,blade protection covers ,wheel cover opening protection ,CE standard electrical equipment
|
Specifications
|
Units
|
GH4220
|
GH4228
|
|
|
Cutting
Capacity 90° |
Rectangular
|
mm
|
200X200
|
280X280
|
|
Circular
|
mm
|
200
|
280
|
|
|
square
|
mm
|
200
|
280
|
|
|
Blade speed
|
M/min
|
27,45,69
|
27,45,69
|
|
|
Blase size
|
mm
|
2800x27x0.9
|
3505x27x0.9
|
|
|
Main motor power
|
kw
|
1.5
|
2.2
|
|
|
Hydraulic motor power
|
kw
|
0.55
|
0.55
|
|
|
Coolant pump motor power
|
kw
|
0.04
|
0.04
|
|
|
Overall dimension
|
mm
|
1400x900x1100
|
1860x1100x1400
|
|
|
weight
|
kg
|
350
|
610
|
|
