The pipe-cutting machine has a wide range of applications and it is suitable for cutting pipes made of stainless steel, carbon steel, etc, required by different industries.
Recently, the Shanghai ANTS team received an inquiry from a furniture manufacturer. The customer needed to cut square tubes with a length of 6 meters, a maximum width and height of 100mm, a tube wall thickness of 6mm and round tubes with a maximum diameter of 120mm. The customer was interested in the CNC pipe cutting machine, so based on the customer’s needs, we recommended the CNC pipe cutting machine CNC425 to the customer.

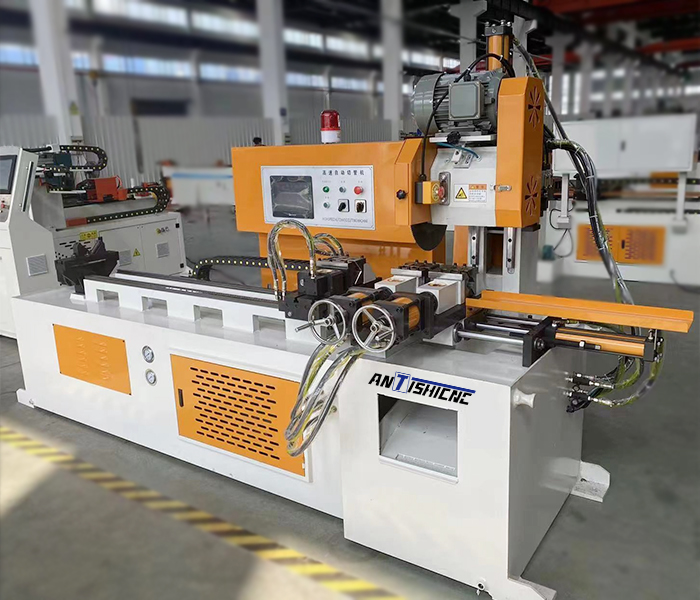

The cutting capacity of CNC425 is: round tube diameter ≤120 mm, square tube size (width*height) ≤100×100 mm. CNC425 can also cut solid bars, cutting capacity: round bar diameter ≤60 mm, square bar size (width*height) ≤50×50 mm. optional features include automatic roller table, deburring machine, cleaning machine, discharging table. The above functions can be freely combined by customers according to their needs.

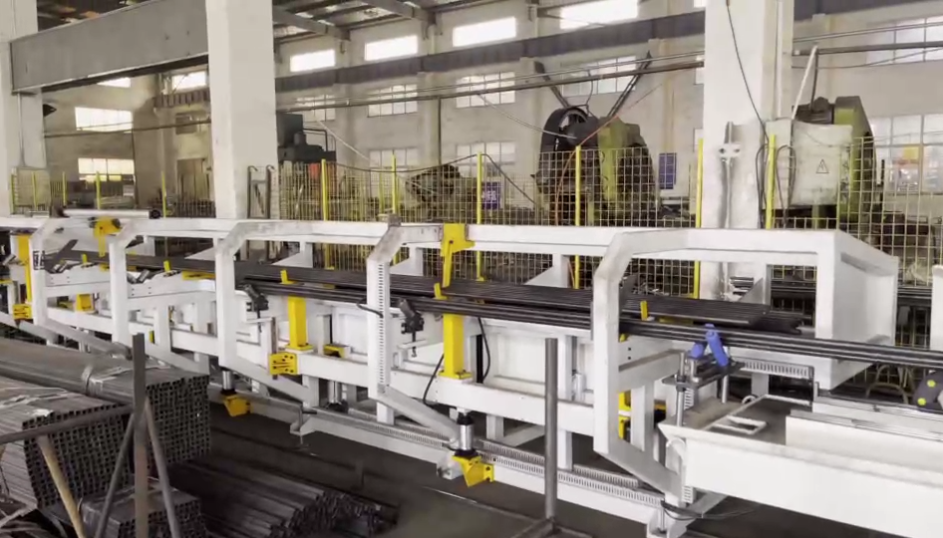

The customer is also interested in the roller table because of the long length of the workpieces and because the customer wants to improve the productivity and requires high capacity. According to the customer’s needs, we recommend the fully automatic roller table to the customer. The combination of fully automatic pipe cutting machine and fully automatic roller table will greatly improve the production efficiency. The customer is very satisfied with our proposal.
| Description | CNC425 | |
| Head cutting angle | 90° | |
| Material can be machined | Iron, stainless steel, copper, aluminum tubes | |
| Cutting capacity | Round tube | ≤Φ120 |
| Square tube | ≤100×100 | |
| Round (Solid) | ≤Φ60mm | |
| Square (Solid) | ≤50×50 | |
| Control system | Operator Interface | Human-machine touch operation interface |
| Control System | Servo system + integrated board + touch screen | |
| Other | Cooling & Lubrication | Water-soluble cutting oil |
| Cutting motor | 3.3/4.0KW speed control motor | |
| Spindle speed | 60/120RPM | |
| Applicable saw blades | Φ350-450mm (high speed steel saw blade) Alloy saw blade is also available |
|
| Feed mode | Vertical hydraulic feed | |
| Feed drive type | Servo motor 1KW | |
| Maximum single feeding stroke | Single 10-1800mm (can unlimited feeding) | |
| Cutting precision | ±0.15-0.20mm | |
If you are also a furniture manufacturer, or have similar processing needs, welcome to consult Shanghai ANTS Machine Equipment co.,ltd. We have rich experience in manufacturing and using pipe cutting machines and can provide you with professional technical support.
