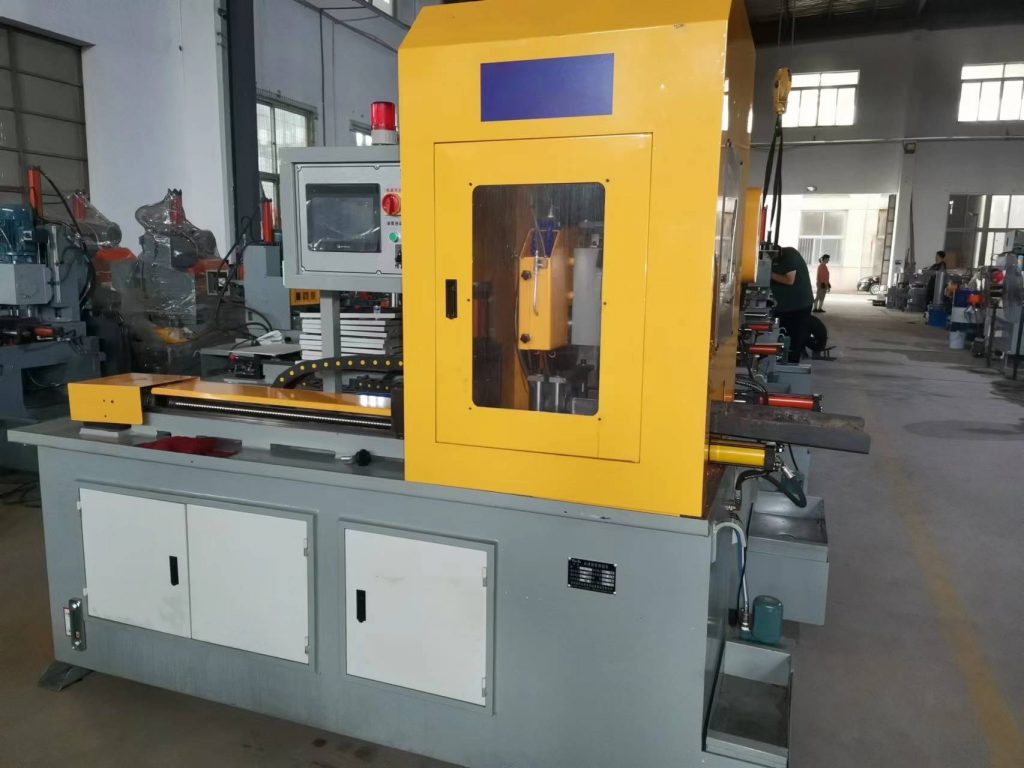

CA355CNCZ-2A*1M Aluminum Circular Saw Machine

Model CA355CNCZ-2A*1M
Operating Voltage Main line 380V, control voltage 110V
Main motor attack rate 3.3/4KW star/delta (saw blade speed 1440/2800r/min)
Saw blade cooling method Cooling water, oil mist cooling
Rated working pressure 4-6Mpa
Clamping force and stroke of cutting clamping cylinder 470KG (0.6Mpa), stroke 50mm
Feeding Clamping Cylinder and Stroke 300KG (0.6Mpa), stroke 50mm
Applicable saw blades Saw blade: 350, inner hole 25.4
Feeding range 0-1000
Cutting accuracy ±0.3
Sawing accuracy Within ±0.3 (cutting accuracy)
Spiral pin discharge machine, collects copper pins, and is equipped with metal chip collection device and collection bucket behind the machine
One set of cross jaws for all round clamping
Machine dimensions 2200*800*1600(mm)
Machine weight 1.2 T

Product Details

The machine table of this machine is welded with high-quality steel, tempered at high temperature, processed by gantry milling, and sprayed on the surface. The power head and the column are cast with ductile iron. Improve the rigidity and stability of the whole machine, and effectively reduce the deformation and vibration of the machine tool. Manually place the pipe fittings, flush, clamp, cut, feed, and the equipment runs automatically. Stop after cutting.

Machine Cutting Ability

1. Make sure to cut 25.4*150 copper bars
2. Small tube multi-branch cutting
3.Material and Specifications:
A. Processing material: soft metals such as copper and aluminum
B. Material specification range: round tube 5-102mm
C. Solid, square tube 10*10-80*80mm
D. Length of raw materials: no length limit for single cutting; unlimited length for multiple cutting, but uniform length.
4. Length range of sawing work piece: effective length of single feeding is 10mm-1000mm
When the servo automatic feeding exceeds 1 meter, it can automatically realize multiple feeding.
5.Description of optimization of saw cutting for head and tail material:
The raw materials are cut to length and uniform length. There is no obvious burr at the end of the pipe, and the cutting length of the head and tail material can be as short as 80mm + 1 work piece length + 2.5mm slit width (saw blade is selected according to the pipe material). When cutting work pieces ≥ 180, no tailings can be achieved
6.Saw blade specification¢355x Inner hole 25.4×100 teeth x Thickness 3.2.
