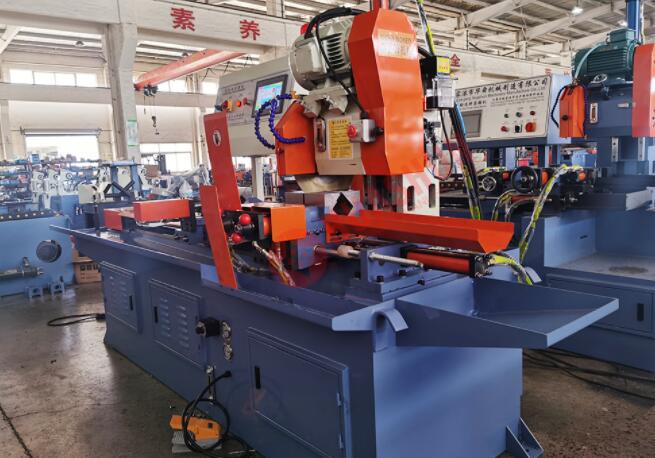

Automatic Pipe Cutting Machine
* Automatic Servo Motor Feeding,Automatic Hydraulic Clamping and Automatic Hydraulic Cutting
* Hydraulic driven saw head for cutting motion.
* Servo Motor Feeding Transmission.
* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum…
* Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles…
* Small Noisy
* Clamping, saw blade advancing,backward, clamp releasing are all hydraulic driven.
* Good cutting quality for tube internal and external without burs.
* Water cooling and lubricate system prolongs the life of machine and saw blade.
* Good mechanical parts ensure machine runs in high stability.
* CE, ISO9001 Certification
|
Model
|
MC-425CNC
|
|
Cutting Capacity
|
120*10mm
|
|
80*80*7mm
|
|
|
120*90mm
|
|
|
120*90mm
|
|
|
16*16mm,25pcs one time
|
|
|
Motor Power
|
3.5/4.2KW
|
|
Hydraulic Pump Motor Power
|
2.2 KW
|
|
Cooling Pump
|
90 W
|
|
Servo Motor Power
|
1KW
|
|
Feeding Accuracy
|
+/- 0.1mm
|
|
Feeding Length
|
5-1500mm/one time
|
|
Saw Blade Size
|
275/300/315/350/400/500
|
|
Machine Dimension
|
3500*1300*1700
|
|
Machine Weight
|
1750KGS
|
