WEDM uses a moving metal wire (molybdenum wire, copper wire or alloy wire) as an electrode wire, and relies on pulse spark discharge between the electrode wire and the workpiece to generate high temperature to melt or vaporize the metal, forming a slit, thereby cutting out parts processing method. Widely used in automobile parts, aerospace, machinery manufacturing, electronic components, medical equipment, building materials, jewelry and other manufacturing.

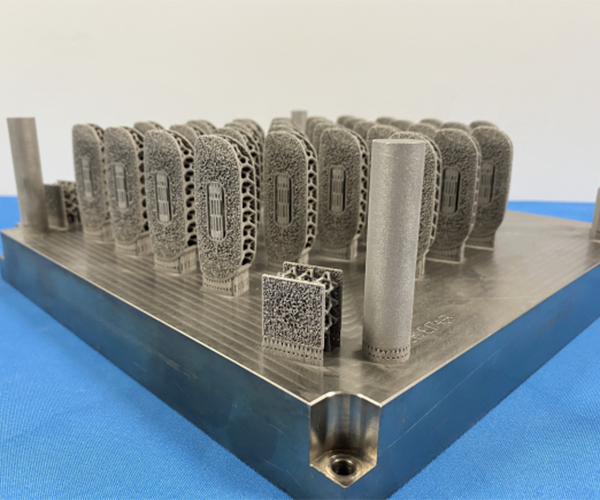

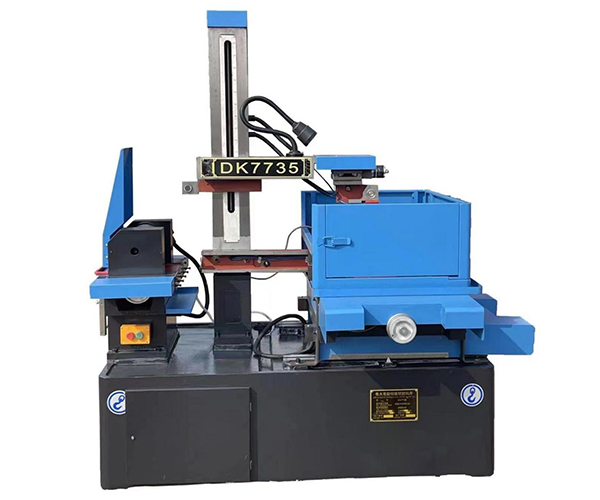

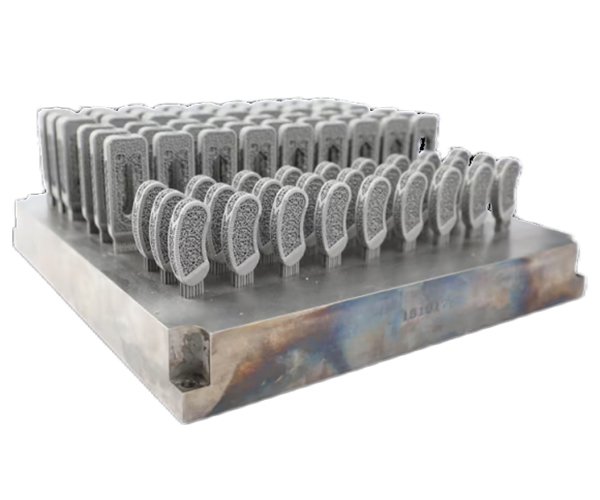

Recently, Shanghai ANTS Machine Equipment Company team received an inquiry from a 3D printing company in the United Arab Emirates. The customer needs to cut the 3D printed product from the metal platform. The size of the workpiece is L 27 x W 27x H 36 cm. After understanding the customer’s detailed needs, we recommended to him the wire cutting DK7735, which can use strong magnets to fix the workpiece vertically for one-time cutting.
| Parameter | DK7735 |
| Work surface size (mm) | 395*565 |
| Work surface travel (mm) | 350×450 |
| Max cutting thickness (mm) | 400 |
| Max load capacity (kg) | 500 |
| Manufacturing Standards | GB7926—2005 |
| Max cutting speed (mm²/min) | 120 |
| Processing area roughness Ra(um) | 2.5 |
| Max current(A) | 6 |
| Electrode wire diameter (mm) | 0.18 |
| Electrode wire fixed speed | 11M/S |
| Working fluid | DX-1 DX-4 |
| Working fluid capacity (L) | 80 |
| Processing taper | 6°/80MM |
| voltage | 220V/50HZ |
| Control cabinet | Integrated programming and control (HL) computer |
If you are also a 3D printing company, or have similar processing needs, welcome to consult Shanghai ANTS. We have rich experience in wire cutting manufacturing and application and can provide you with professional technical support.
