Introduction
The series of this lathe is suitable all kinds of turningwork, such as internal and external turning, taper turning and other revolutionfacing, head facing and various of common threading turning—such as metric,inch, module, pitch and drilling, reaming, tapping and broaching and etc.
C6163B、C6263B、C6180A、C6280A adopt bed and foot post structure, the width of thebed is 560mm, and autofeeding function for upper toolpost is optional.

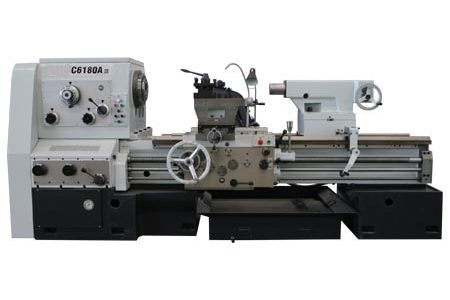

C6180 adopts integral bed structure, and the width of the bedis 600mm and with autofeeding function for upper toolpost.
| items | unit | C6163B | C6180A | ||
| capacity | Max swing over bed | mm(in) | φ660(φ25.984) | φ830(φ32.677) | |
| Max swing dia.over cross slide | mm(in) | φ400(φ15.748) | φ540(φ21.26) | ||
| Max distance between two tops | mm(in) | 1500/2000/3000/4000
(59.055/78.74/118.11/157.48) |
|||
| Max turning length | mm(in) | 1400/1900/2900/3900
(55.118/74.803/114.173/153.543) |
|||
| Width of bed way | mm(in) | 560(22.047) | |||
| spindle | Spindle Bore | mm(in) | φ105(φ4.134) | ||
| Taper of spindle bore | 1:20 (metric taper) | ||||
| Type of spindle nose | A1-11 | ||||
| spindle speed | r/min(rpm) | 14- class 12.5-1120 | |||
| Feeds and
threads |
Max travel of upper toolpost | mm(in) | 200(7.874) | ||
| Max travel of lower toolpost | mm(in) | 480(18.898) | 515(20.276) | ||
| Tool section | mm | 32×32 | |||
| X-axis feeds | mm/r（in/r） | 64kinds 0.031-7.0(0.00122-0.276) | |||
| Y-axis feeds | mm/r（in/r） | 64kinds 0.062-14.0(0.00244-0.551) | |||
| Metric threads | mm(in) | 38kinds 0.5-56(0.00197-2.205) | |||
| Inch threads | t.p.i | 43kinds 56-0.5 | |||
| Module threads | πmm | 21kinds 0.25-7 | |||
| Diametric pitch threads | DP | 27kinds 56-4 | |||
| tailstock | Diameter of quill | mm(in) | φ100(φ3.937) | ||
| Max travel of quill | mm(in) | 250(9.843) | |||
| Taper of quill(Morse) | Morse No.5 | ||||
| items | unit | C6263B | C6280A | |
| capacity | Max swing over bed | mm(in) | φ660(φ25.984) | φ830(φ32.677) |
| Max swing dia.over cross slide | mm(in) | φ400(φ15.748) | φ540(φ21.26) | |
| Max distance between two tops | mm(in) | 1500 (59.055) | ||
| Max turning length | mm(in) | 1400 (55.118) | ||
| Max swing dia. over | mm(in) | φ800(φ31.496) | φ970(φ38.189) | |
| Effective width in gap | mm(in) | 300 (11.811) | ||
| Width of bed way | mm(in) | 560(22.047) | ||
| spindle | Spindle thru-hole dia. | mm(in) | φ105(φ4.134) | |
| Taper of spindle bore | 1:20 (metric taper) | |||
| Type of spindle nose | A1-11 | |||
| spindle speed | r/min(rpm) | 14- class 12.5-1120 | ||
| Feeds and
threads |
Max travel of upper toolpost | mm(in) | 200(7.874) | |
| Max travel of lower toolpost | mm(in) | 480(18.898) | 515(20.276) | |
| Tool section | mm | 32×32 | ||
| X-axis feeds | mm/r（in/r） | 64kinds 0.031-7.0(0.00122-0.276) | ||
| Y-axis feeds | mm/r（in/r） | 64kinds 0.062-14.0(0.00244-0.551) | ||
| Metric threads | mm(in) | 38kinds 0.5-56(0.00197-2.205) | ||
| Inch threads | t.p.i | 43kinds 56-0.5 | ||
| Module threads | πmm | 21kinds 0.25-7 | ||
| Diametric pitch threads | DP | 27kinds 56-4 | ||
| tailstock | Diameter of quill | mm(in) | φ100(φ3.937) | |
| Max travel of quill | mm(in) | 250(9.843) | ||
| Taper of quill(Morse) | Morse No.5 | |||
