| Features: |
| Hydraulic blade tension |
| Digital blade speed readout |
| Quick sliding vise with hydraulic clamping |
| Manual speed governor |
TECHNICAL SPECIFICATION

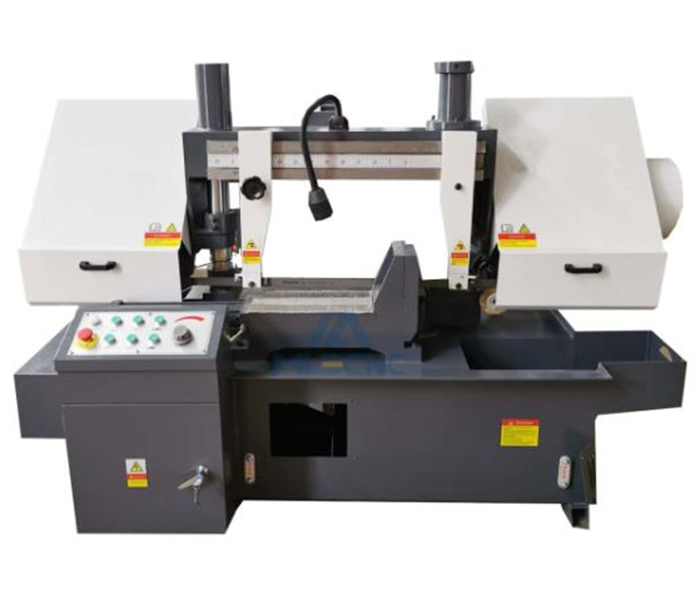

| Hydraulic semi-automatic band saw (vertical) | Hydraulic semi-automatic band saw (Horizontal) |
| Cutting size (for Round at 90⁰) | 400 mm |
| Cutting size (for Square at 90⁰) | 400mm |
| Cutting size (for Rectangular at 90⁰) | 400×400 mm |
| Blade Size | 34 x 1.1 x 4880 mm (standard) |
| Blade Speed @50Hz: | 27~75 rpm (variable) |
| Blade Motor | 4.0kW |
| Hydraulic Pump | 0.75 kW |
| Hydraulic Tank: | 60 L |
| Coolant Tank | 80 L |
| Table Height | 740 mm |
| Power supply | 415V, 3-phase, 50Hz |
| Machine weight | 1200 kg |
