Application:
Double column horizontal metal band sawing machine.
1. Hydraulic control sawing feed rate, stepless adjustable.
2. the workpiece is tightened by hydraulic clamping.
3. band saw blade uses rolling bearings and carbide guide to extend the life of the saw blade.
4. electric feeding frame (optional)
Application:

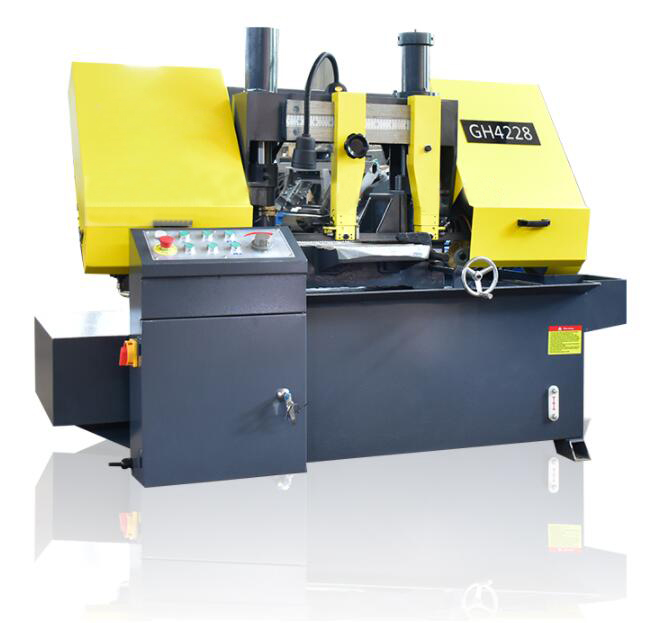

Automatic Metal Cutting Band Saw Machines GH4228 GH4235
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is
very extensive.
Product main technical parameters:
|
MODEL NO
|
GH4228
|
GH4235
|
|
Cutting capacity(mm)
|
280-280×280
|
350-350×350
|
|
Blade size(mm)
|
3505×34×1.1
|
4115×34×1.1
|
|
Blade speed(m/min)
|
27,45,69
|
27,45,69
|
|
Clamping type
|
Hydraulic
|
Hydraulic
|
|
Motor main(kw)
|
2.2
|
3
|
|
Motor hydraulic(kw)
|
0.55
|
0.55
|
|
Coolant pump(kw)
|
0.04
|
0.04
|
|
Overall dimension(mm)
|
1860×1000×1400
|
2000×1000×1500
|
