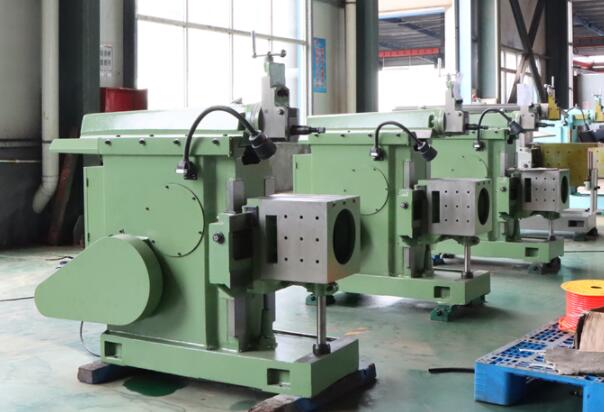

Molding machines mainly include ordinary molding machines, imitation molding machines and mobile molding machines. The main movement of the small and medium-sized forming machine is mainly driven by the crank rocker mechanism. The large-scale forming machine adopts hydraulic transmission, and the movement of the ram is basically uniform. The main parameter of the machine is the maximum planing length.
|
Specifications
|
Units
|
B635A
|
|
Maximum shaping length
|
mm
|
350
|
|
Maximum distance from ram bottom to table surface
|
mm
|
330
|
|
Maximum moving distance of the working table(level)
|
mm
|
400
|
|
Maximum moving distance of the working table (vertical)
|
mm
|
270
|
|
Since the plane bed leading surface extending the maximum distance
|
mm
|
550
|
|
Maximum ram travel
|
mm
|
170
|
|
Table rotary angle (without vice)
|
±90°
|
|
|
Table rotary angle (with vice)
|
±55°
|
|
|
Maximum tool carrier travel
|
mm
|
110
|
|
Number of ram reciprocating per minute
|
NO/min
|
32/50/80/125
|
|
Gear move one tooth (vertical)
|
mm
|
0.18
|
|
Gear move one tooth (level)
|
mm
|
0.21
|
|
Gear move four tooth (vertical)
|
mm
|
0.73
|
|
Gear move four tooth (level)
|
mm
|
0.84
|
|
Main motor power
|
KW
r/min |
1.5
1400 |
|
Overall dimensions (L*W*H)
|
mm
|
1530*930*1370
|
|
N/G.W
|
kg
|
1000/1250
|
